Around the World in $80 (AWE) is a desktop application for keeping track of spending and expenditure during travels, splitting expenses with travel-mates, and facilitating easy recollection of debts at the end of every trip. AWE is the world’s only bespoke app designed for group travellers.

The app promises to revolutionize the group-travel space. With AWE, bills can be split and monitored in a centralized manner that maximizes the potential for disputes and maximizes the efficiency of payment and recollection of debts.

AWE’s vision is a more interconnected world where relationships are more easily built and maintained. Our mission is to accomplish through a user-centric approach that seeks to provide the user with what they need, at the tip of their fingertips. This document marks the first step towards the accomplishment of that mission, and the beginning of your journey around the world.

Table of Contents

Acknowledgements

This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

Setting up, getting started

Refer to the guide Setting up and getting started.

Click here to return to table of contents

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

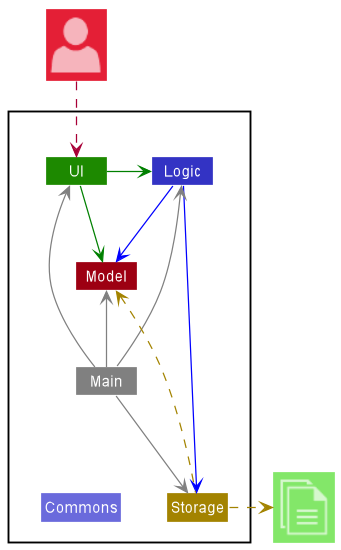

Architecture Diagram
Fig 1. Architecture Diagram

The Architecture Diagram given above explains the high-level design of the App.

Click here to return to table of contents

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

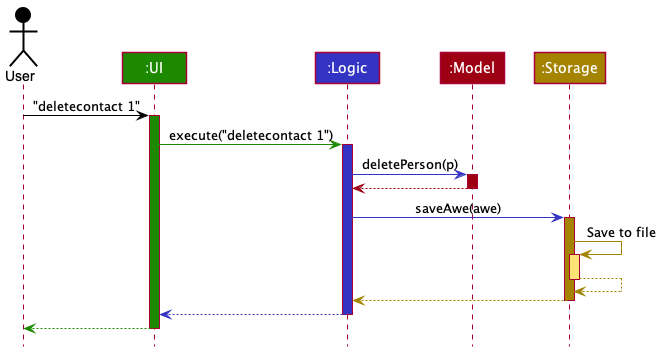

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command deletecontact 1.

Architecture Sequence Diagram
Fig 2. Architecture Sequence Diagram

Click here to return to table of contents

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

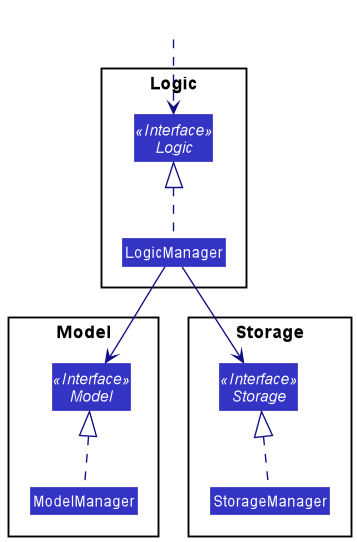

Component Managers
Fig 3. Component Managers

The sections below give more details of each component.

Click here to return to table of contents

UI component

The API of this component is specified in Ui.java

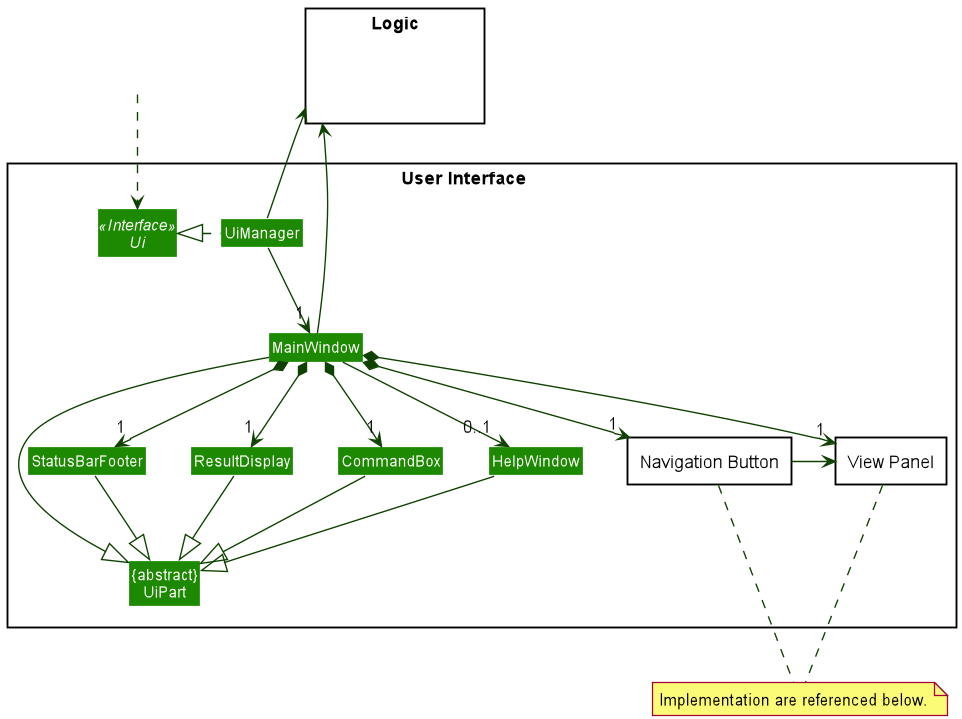

Ui Class Diagram
Fig 4. Ui Class Diagram

The UI consists of a MainWindow that is made up of parts e.g. CommandBox, ResultDisplay, ViewPanel, NavigationButton etc. All these, except for GroupButtonListener and PersonButtonListener in NavigationButton, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

Click here to return to table of contents

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Person object residing in the Model.

Click here to return to table of contents

View Panel

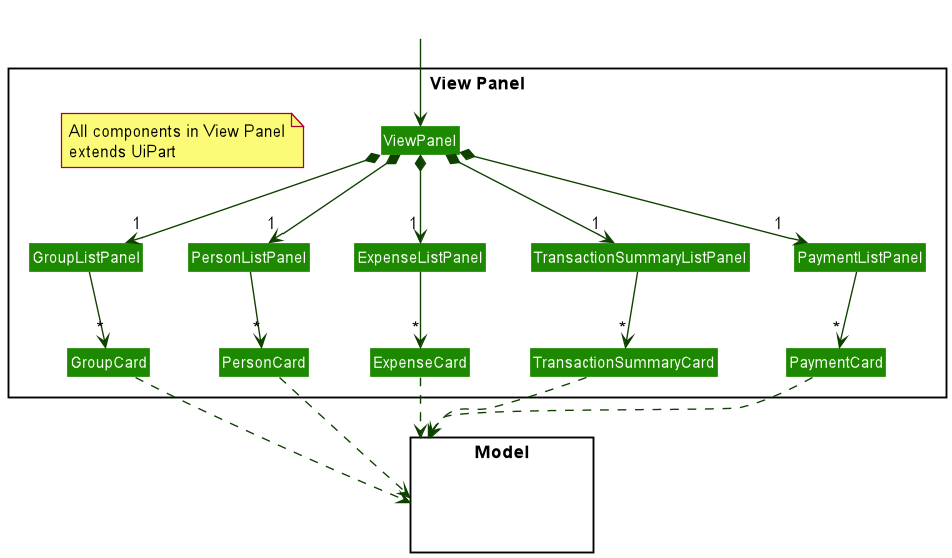

Ui View Panel Diagram
Fig 5. Ui View Panel Diagram

The ViewPanel consist of the following parts:

  • GroupListPanel
  • ContactListPanel
  • ExpenseListPanel
  • TransactionSummary
  • PaymentListPanel

Each panel will display the corresponding list accordingly. The ViewPanel will only show up a single list panel at a time. We have decided to opt for this way of implementation due to the following:

  • Able to make use of existing AB3 implementation of PersonList
  • Will not increase code complexity as compared to both list using the same panel.
  • Able to toggle easily with CLI commands

In addition to using CLI command, we will also be implementing the toggling of list panel with the use of buttons.

Click here to return to table of contents

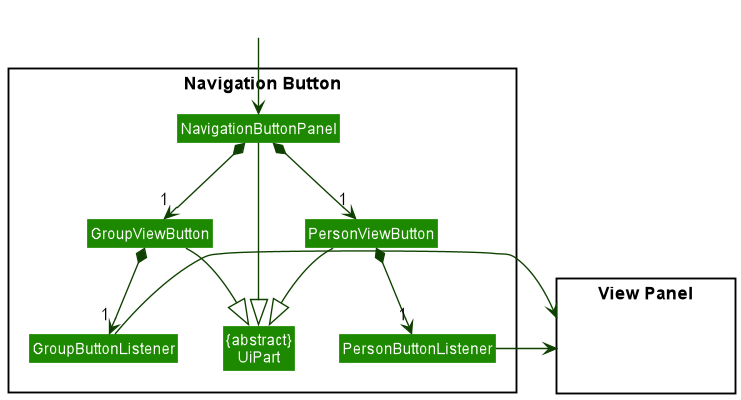

Ui Navigation Button Diagram
Fig 6. Ui Navigation Button Diagram

The NavigationButtonPanel consist of the following parts:

  • GroupViewButton
  • ContactViewButton

Clicking each button will show the respective list view in ViewPanel. The clicking of the button is handled by EventHandler.

Click here to return to table of contents

Logic component

API : Logic.java

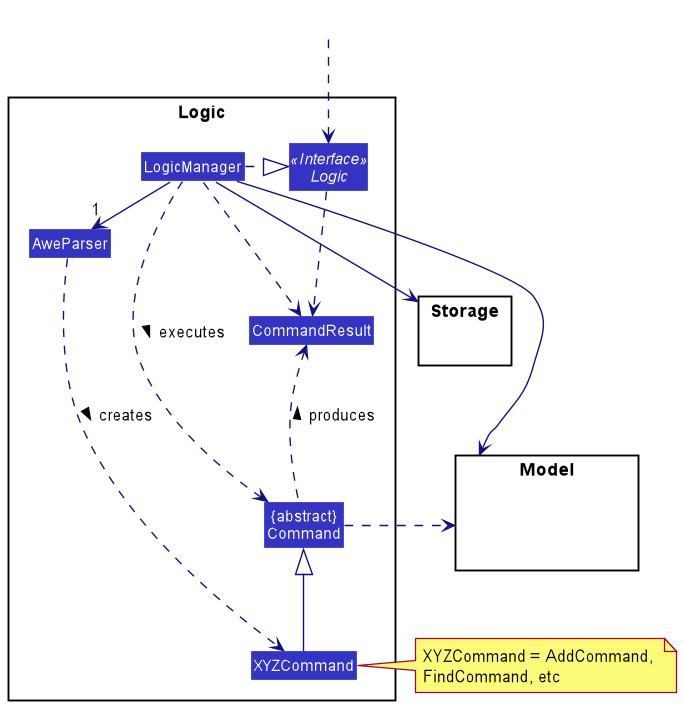

Here’s a (partial) class diagram of the Logic component:

Logic Class Diagram
Fig 7. Logic Class Diagram

Click here to return to table of contents

How the Logic component works:

  1. When Logic is called upon to execute a command, it uses the AweParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to add a contact).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

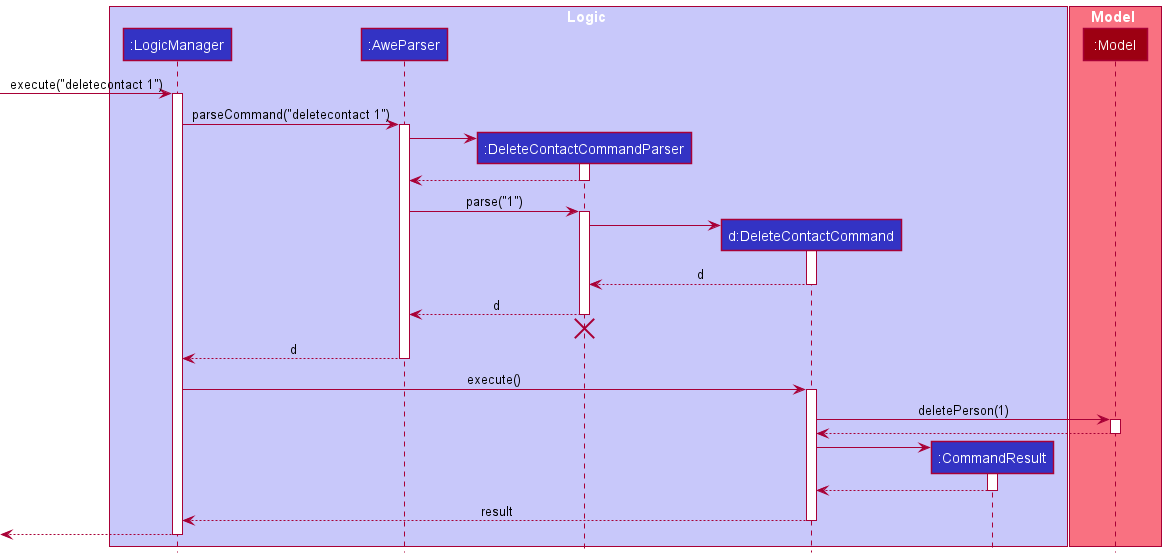

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("deletecontact 1") API call.

Delete Sequence Diagram
Fig 8. Delete Contact Sequence Diagram

:information_source: Note: The lifeline for DeleteContactCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Click here to return to table of contents

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

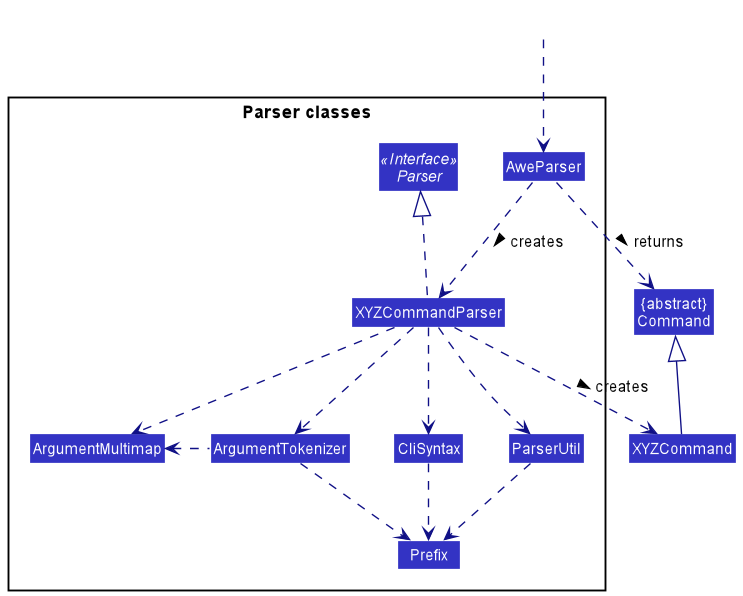

Parser Classes
Fig 9. Parser Classes

How the parsing works:

  • When called upon to parse a user command, the AweParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddContactCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddContactCommand) which the AweParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddContactCommandParser, DeleteContactCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Click here to return to table of contents

Model component

API : Model.java

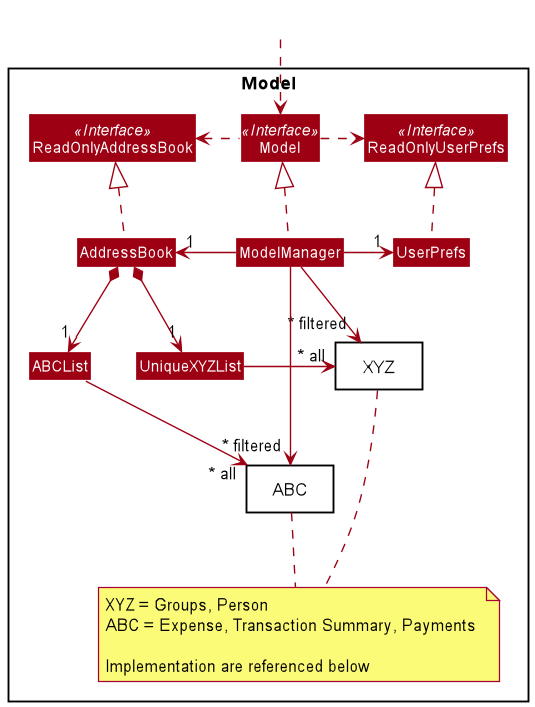

Model Class Diagram
Fig 10. Model Class Diagram

Click here to return to table of contents

The Model component,

  • stores AWE data
    • all Person objects (which are contained in a UniquePersonList object).
    • all Group objects (which are contained in a UniqueGroupList object).
    • all Expense objects (which are contained in a ExpenseList object).
    • all TransactionSummary objects (which are contained in a TransactionSummaryList object).
    • all Payment objects (which are contained in a PaymentList object).
  • stores the currently ‘selected’ Person/Group/Expense/TransactionSummary /Payment objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

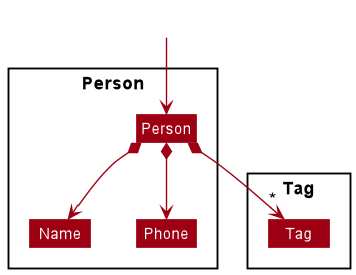

Person Class Diagram
Fig 11. Person Class Diagram

The Person component,

  • Handles the storing of each contact in AWE.
  • Stores a Name and a Phone object for each person.
  • Stores any amount of Tag objects.

Click here to return to table of contents

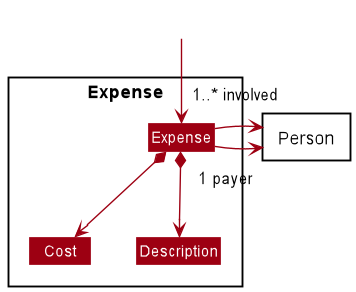

Expense Class Diagram
Fig 12. Expense Class Diagram

The Expense component,

  • Handles the storing of each expense in AWE.
  • Expenses will store a reference to all instance of Person involved in the expenses.
  • Stores a Cost and a Description for each Expense.

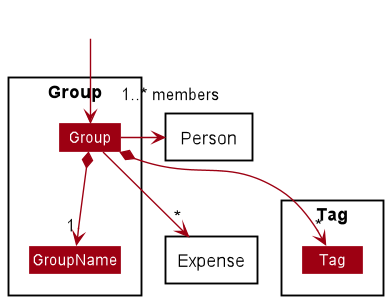

Group Class Diagram

Fig 13. Group Class Diagram

The Group component,

  • Handles the data of each group in AWE.
  • Groups will store a list of reference to all Expense and Person in the group.
  • Stores a GroupName for each group.
  • Stores any amount of Tag object.

Click here to return to table of contents

Transaction Summary Class Diagram
Fig 14. Transaction Summary Class Diagram

The TransactionSummary component,

  • Handles the display of all the individual split expenses in a group.
  • Stores a reference to a Person and a Cost.

Payment Class Diagram
Fig 15. Payment Class Diagram

The Payment component,

  • Handles the display of all the payments to be made between contacts in a group.
  • Stores 2 Person objects and a Cost.

Click here to return to table of contents

Storage component

API : Storage.java

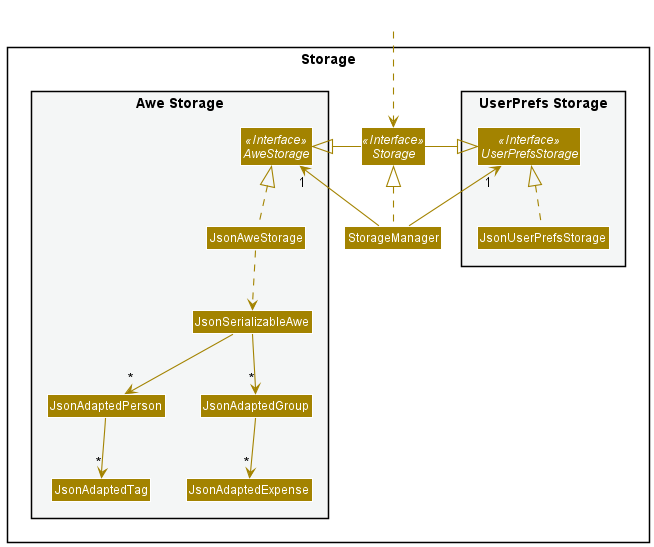

Storage Class Diagram
Fig 16. Storage Class Diagram

The Storage component,

  • can save both AWE data and user preference data in json format, and read them back into corresponding objects.
  • inherits from both AweStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)
  • has the IndividualAmount class which is composed of a Person and a Cost, similar to the entries within the HashMaps within Expense. Since HashMap is not serializable in Json format, we utilize a list of IndividualAmount objects to store the HashMap.

Click here to return to table of contents

Implementation

This section describes some noteworthy details on how certain features are implemented.

Note: The words contact and person will be used interchangeably in this section.

Add Contact Feature

The add contact mechanism is facilitated by defining a Person model and adding a Unique Person List field to AWE. The Person model contains a Name field containing the name of the contact, a Phone field containing the number of the contact, and optional Tags to attach to the contact.

The following activity diagram shows what happens when a user executes an addcontact command.

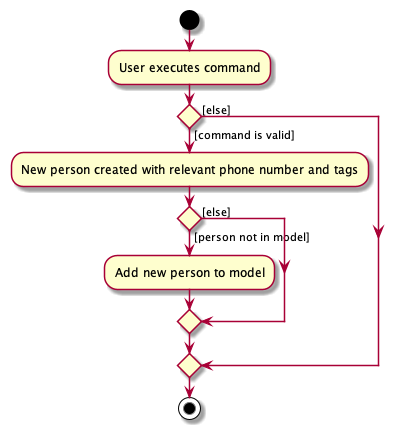

Add Contact Activity Diagram
Fig 17. Add Contact Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the addcontact mechanism behaves at each step.

Step 1. A valid addcontact command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The AddContactCommandParser parses the input and checks for presence of the relevant prefixes. It also checks that the name is valid and all members specified are in the contact list. It returns a AddContactCommand.

Step 3. AddContactCommand runs its execute() method which checks if a contact with the same name has already been created. If not, the newly created contact is added into the AWE model. Upon successful execution, CommandResult is returned.

Click here to return to table of contents

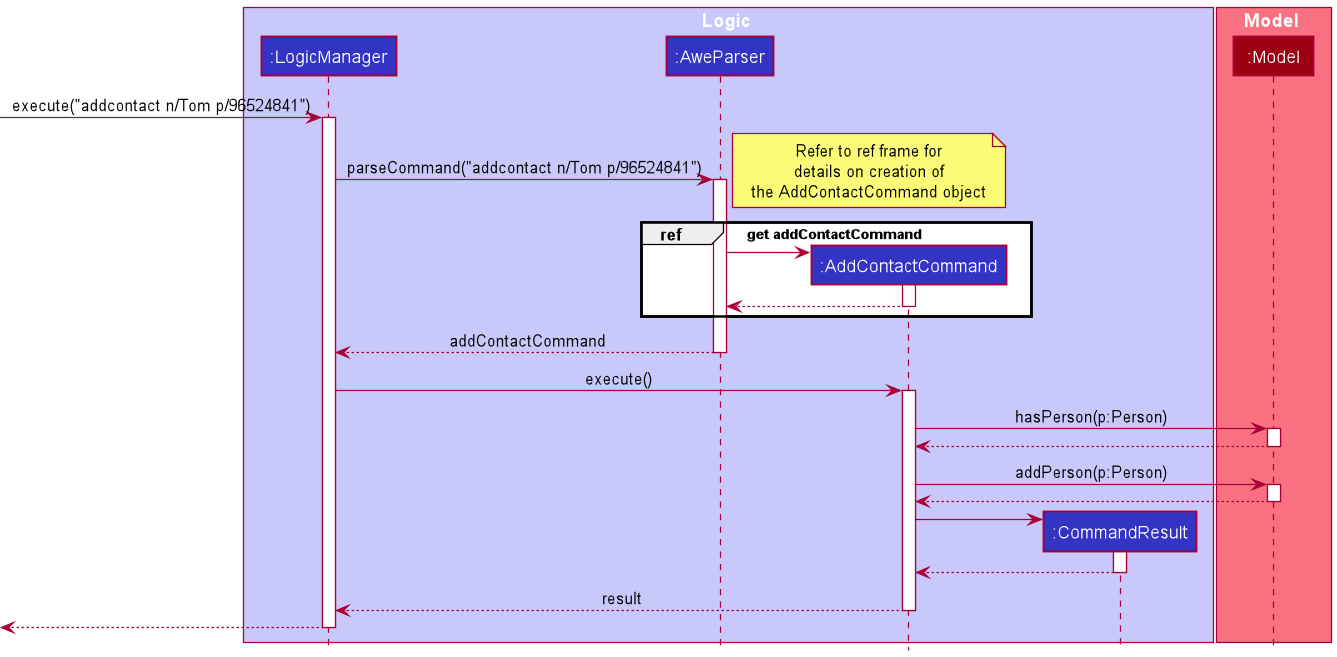

The following sequence operation shows how the addcontact operation works.

Add Contact Sequence Diagram
Fig 18. Add Contact Sequence Diagram

:information_source: Note: The lifeline for AddContactCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

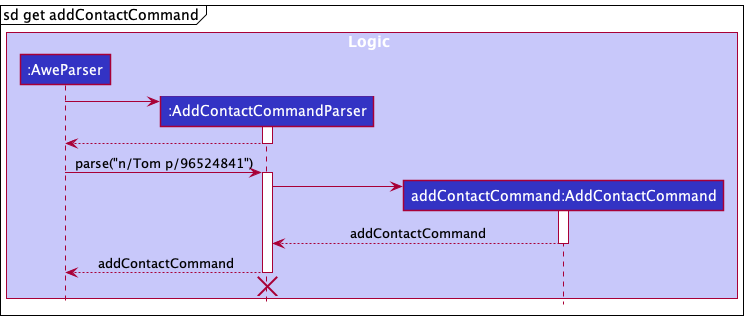

Add Contact Reference Sequence Diagram
Fig 19. Add Contact Reference Sequence Diagram

Click here to return to table of contents

Design considerations:

Aspect: Case-sensitivity of Name parameter in addcontact command:

  • Alternative 1 (current choice): Name is case-sensitive (for instance, Alex and alex are treated as unique names, and effectively, unique persons as well).
    • Pros: Easy to implement.
    • Pros: Many cultures have names that are common. Allowing users to enter the same name but in different case allows unique users with the same name to store their contacts.
    • Pros: Many cultures have names that are spelled in different case. For instance, in Singapore, the characters “s/o” (often used to denote “son of”) are spelled in different case by different people. Should multiple users have the same name but different case-spelling, it would be respectful to accept all versions of the name, regardless of case.
    • Pros: Provides the user with a greater level of flexibility and user-choice.
    • Cons: Possibility of user referring to the wrong person in commands due to creation of multiple persons with the same names but in different case.
  • Alternative 2 : Name is not case-sensitive.
    • Pros: Difficult to implement.
    • Pros: Safeguards user from erroneously referring to the wrong person in commands.
    • Cons: Difficult for users with the same name.
    • Cons: May offend some people if the casing of their name is regarded as unacceptable or not given recognition.
    • Cons: User has limited flexibility and restricted user-choice.
  • Justification
    • The two cases described in the alternatives, where multiple persons of the same name but different case are necessary, are quite prevalent.
    • Moreover, we trust the user to be careful with the casing of the Name when entering the commands.
    • As such, we chose to make the Name parameter case-sensitive.

Click here to return to table of contents

Create Group Feature

The create group mechanism is facilitated by defining a Group model and adding a Unique Group List field to AWE. The Group model contains a GroupName field containing the name of the group, an ArrayList of Person objects who are members of the Group, an ArrayList of Expense objects that keeps track of the expenditures of the Group, a HashMap that contains details of how much each member has paid in total across the expenses, and a HashMap that contains details of the total expenditure incurred by each member across the trip.

The following activity diagram shows what happens when a user executes a createGroup command.

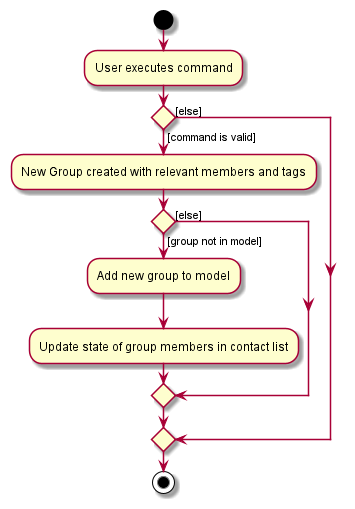

Create Group Activity Diagram
Fig 20. Create Group Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the creategroup mechanism behaves at each step.

Step 1. A valid creategroup command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The CreateGroupCommandParser parses the input and checks for presence of the relevant prefixes. It also checks that the group name is valid and all members specified are in the contact list. It returns a CreateGroupCommand.

Step 3. CreateGroupCommand runs its execute() method which checks if a group with the same name has already been created. If not, the newly created group is added into the AWE model and all members within the group are updated in the model. Upon successful execution, CommandResult is returned.

The following sequence operation shows how the creategroup operation works.

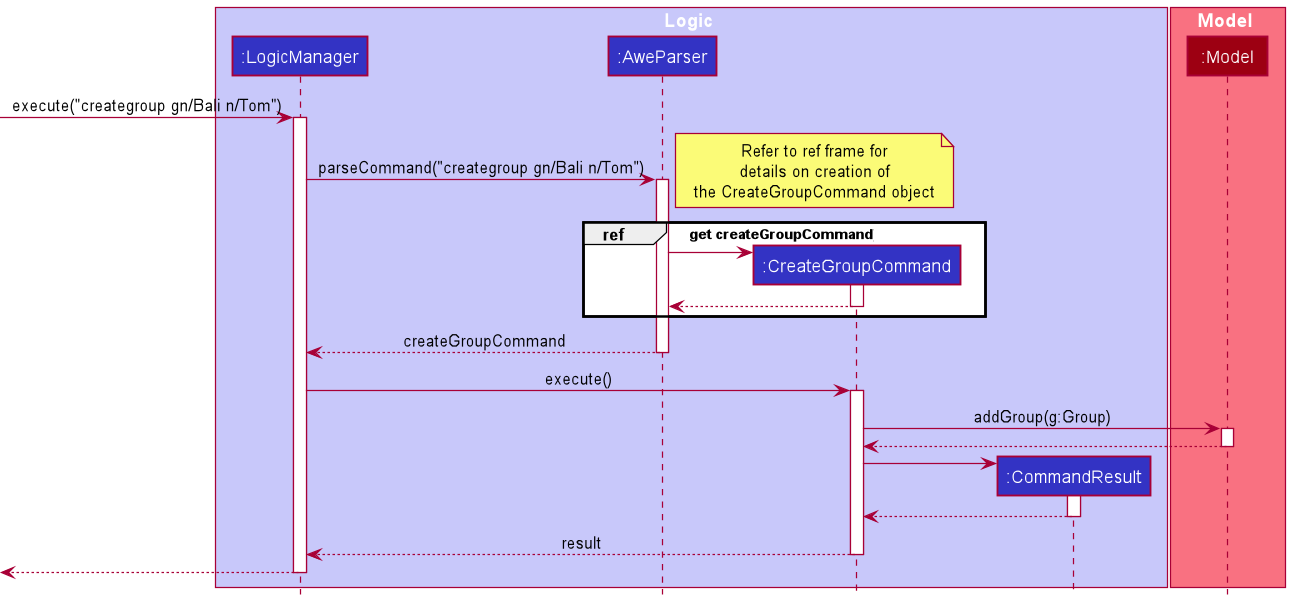

Create Group Sequence Diagram
Fig 21. Create Group Sequence Diagram

Click here to return to table of contents

:information_source: Note: The lifeline for CreateGroupCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

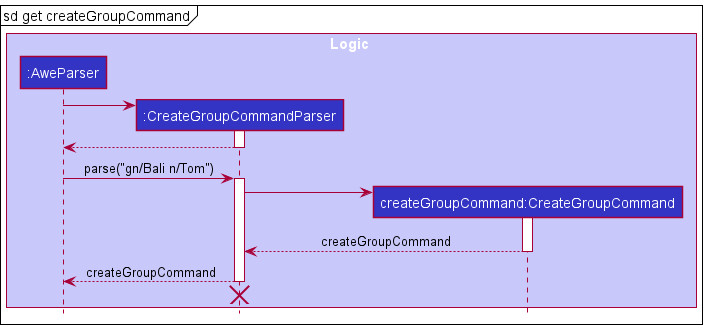

Create Group Reference Sequence Diagram
Fig 22. Create Group Reference Sequence Diagram

Design considerations:

Aspect: User command for creategroup:

  • Alternative 1 (current choice): Create Travel Group with specified members and tags.
    • Pros: Intuitive for user to create a travel group with specified members and tags.
    • Pros: Provides user with convenience of setting up a travel group with minimal commands.
    • Cons: Harder to implement.
    • Cons: Easier for user to make an erroneous command.
  • Alternative 2 : Create Travel Group only.
    • Pros: Easy to implement.
    • Pros: Command has single responsibility. Easy to remember the sole purpose of creategroup command.
    • Cons: Unintuitive for user as travel group is created without any members or tags.
    • Cons: Inconvenient for user to use multiple commands to set up a travel group.

Click here to return to table of contents

  • Justification
    • User will have at least one member in mind when creating a group.
    • As such, it is only natural for the creategroup command to support addition of members and tags into the group upon creation.
    • This minimizes the number of commands a user has to make in setting up a functional Group.
    • As such, it is better to choose Alternative 1, as this provides the user with a far better user experience.

Aspect: Case-sensitivity of GroupName parameter in creategroup command:

  • Alternative 1 (current choice): GroupName is case-sensitive (for instance, BALI and bali are treated as unique group names, and effectively, unique groups as well).
    • Pros: Easy to implement.
    • Pros: If the user goes on multiple trips to the same place, they can keep track of multiple groups by adding multiple groups of a similar name, different by case.
    • Pros: If multiple groups of users go on trips to the same place, they can keep track of multiple trips by adding multiple groups of a similar name, different by case.
    • Pros: Provides the user with a greater level of flexibility and user-choice.
    • Cons: Possibility of user referring to the wrong group in commands due to creation of multiple-groups with the same names but in different case.
  • Alternative 2 : GroupName is not case-sensitive.
    • Pros: Difficult to implement.
    • Pros: Safeguards user from erroneously referring to the wrong group in commands.
    • Cons: Difficult for users who go on a trip to the same place multple times to keep track of their trips.
    • Cons: Difficult to keep track of trips or groups if multiple groups of users go on trips to the same place.
    • Cons: User has limited flexibility and restricted user-choice.

Click here to return to table of contents

  • Justification
    • The two cases described in the alternatives, where multiple groups of the same name are necessary, are quite prevalent.
    • Moreover, we trust the user to be careful with the casing of the GroupName when entering the commands.
    • As such, we chose to make the GroupName parameter case-sensitive.
  • Improvements
    • The solution of making the GroupName parameter case-sensitive to permit users to create groups of the same name should the use case demand it is not ideal.
    • In the long-term, we plan to make GroupName case-insensitive, but this will require changes to the command.
    • One such change currently being worked on is to include a DATETIME parameter for this command, so that users who go on multiple trips to the same location at different times can keep track of their trips.
    • Other solutions are necessary to satisfy the use case wherein different sets of members wish to go on a trip to the same location at the same time and wish to create groups of the same name.
    • A solution that is being considered is to check for uniqueness of the group by checking that the members in each group are different.
    • However, this will require changes to other commands as presently most commands operate on the assumption that GroupName is unique (case-sensitivity considered).

Click here to return to table of contents

Delete Group Feature

The delete group mechanism is facilitated by maintaining the constraint that every Group has a unique GroupName. This allows the Model class to easily retrieve the Group based on the name entered by the user and remove the group from the model.

The following activity diagram shows what happens when a user executes a deletegroup command.

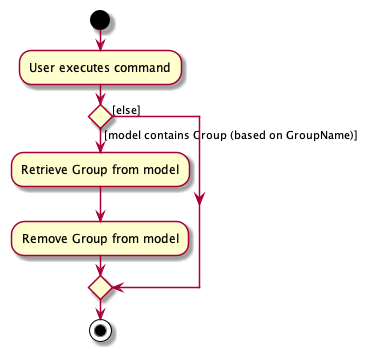

Delete Group Activity Diagram
Fig 23. Delete Group Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the deletegroup mechanism behaves at each step.

Step 1. A valid deletegroup command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The DeleteGroupCommandParser parses the input and checks for presence of the relevant prefixes. It also checks that the group name is valid (does not have any non-alphanumeric characters). It returns a DeleteGroupCommand.

Step 3. DeleteGroupCommand runs its execute() method which checks if a group with the same name has been created in the past. If so, this group is retrieved from the model. Subsequently, the group is removed from the AWE. Upon successful execution, CommandResult is returned.

The following sequence operation shows how the deletegroup operation works.

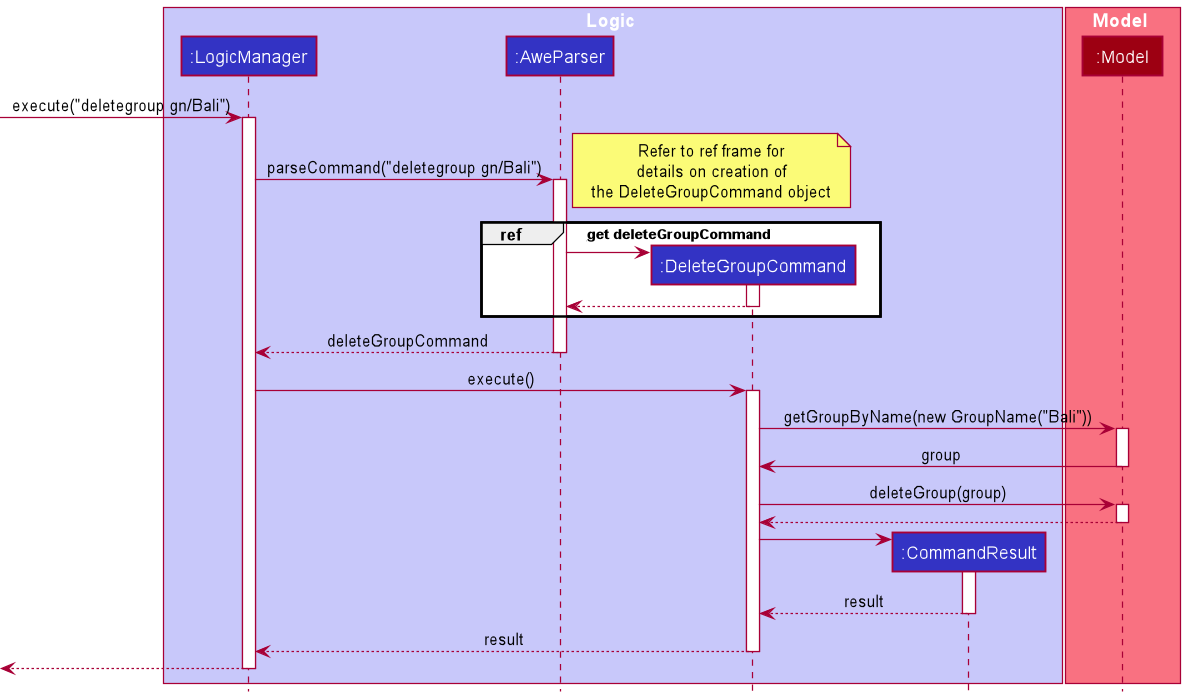

Delete Group Sequence Diagram
Fig 24. Delete Group Sequence Diagram

:information_source: Note: The lifeline for DeleteGroupCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Click here to return to table of contents

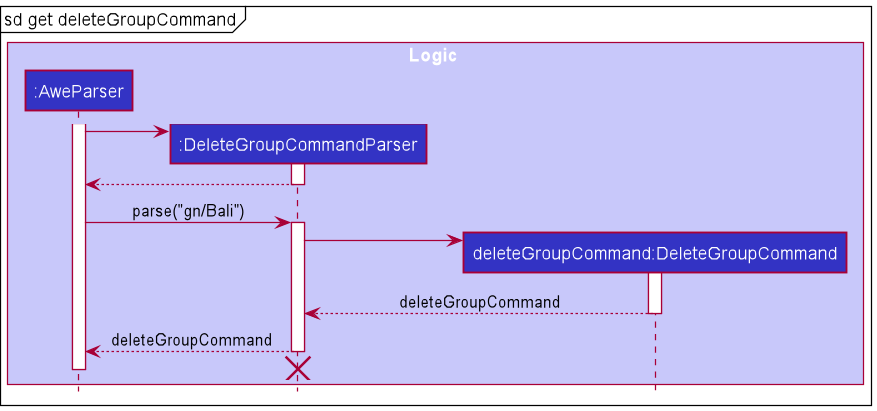

Delete Group Reference Sequence Diagram
Fig 25. Delete Group Reference Sequence Diagram

Design considerations:

Aspect: User command for deletegroup:

  • Alternative 1 (current choice): Delete based on GroupName.
    • Pros: Easy to implement.
    • Pros: Difficult for user to make an erroneous command.
    • Cons: Long user command.
    • Cons: Requires imposition of constraint that group names are unique.
  • Alternative 2 (index based): Delete based on index position in ObservableList.
    • Pros: Easy to implement.
    • Pros: Short user command
    • Cons: Unintuitive for user.
    • Cons: Easy for user to make an erroneous command.
  • Justification
    • Group contains large mass of information such as multiple expenses, individual expenditures, and payments.
    • This information is unrecoverable once deleted.
    • As such, it is better to choose Alternative 1, as this makes it difficult for user to accidentally delete a group.

Click here to return to table of contents

Aspect: Internal delete mechanism:

  • Alternative 1 (current choice): Retrieve group from list and delete.
    • Pros: Easy to implement.
    • Pros: Easier to modify in future.
    • Cons: Extra step of retrieval leads to slower execution.
  • Alternative 2 (name based): Delete based on GroupName.
    • Pros: Easy to implement.
    • Pros: Process is completed faster.
    • Cons: Might cause issues in case of future modifications.
  • Justification
    • Retrieving the group and subsequently deleting the group is a slower process.
    • However, the alternative implementation relies on the uniqueness of the GroupName field of Group objects.
    • Should we modify or remove the constraint, the alternative implementation would require significant alterations.
    • To make the feature more extendable, we choose alternative 1.

Click here to return to table of contents

Group Edit Features

The group edit mechanism is facilitated by defining a Group model and adding a Unique Group List field to AWE. The Group model contains a GroupName field containing the name of the group, an ArrayList of Person objects who are members of the Group, an ArrayList of Expense objects that keeps track of the expenditures of the Group. The group edit mechanism comprises the following commands.

  • groupeditname
  • groupaddcontact
  • groupremovecontact
  • groupaddtag
  • groupremovetag

Given the high degree of similarity in implementation and design considerations between these commands, only the groupeditname command will be explained comprehensively in this section.

Given below is an example usage scenario and how the groupeditname command behaves at each step.

Step 1. A valid groupeditname command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The GroupEditNameCommandParser parses the input and checks for presence of the relevant prefixes. It also checks that both the old and new group names are valid. It returns a GroupEditNameCommand.

Step 3. GroupEditNameCommand runs its execute() method which updates the name of the group in the AWE model. Upon successful execution,CommandResult is returned.

Click here to return to table of contents

The following sequence operation shows how the groupeditname command works.

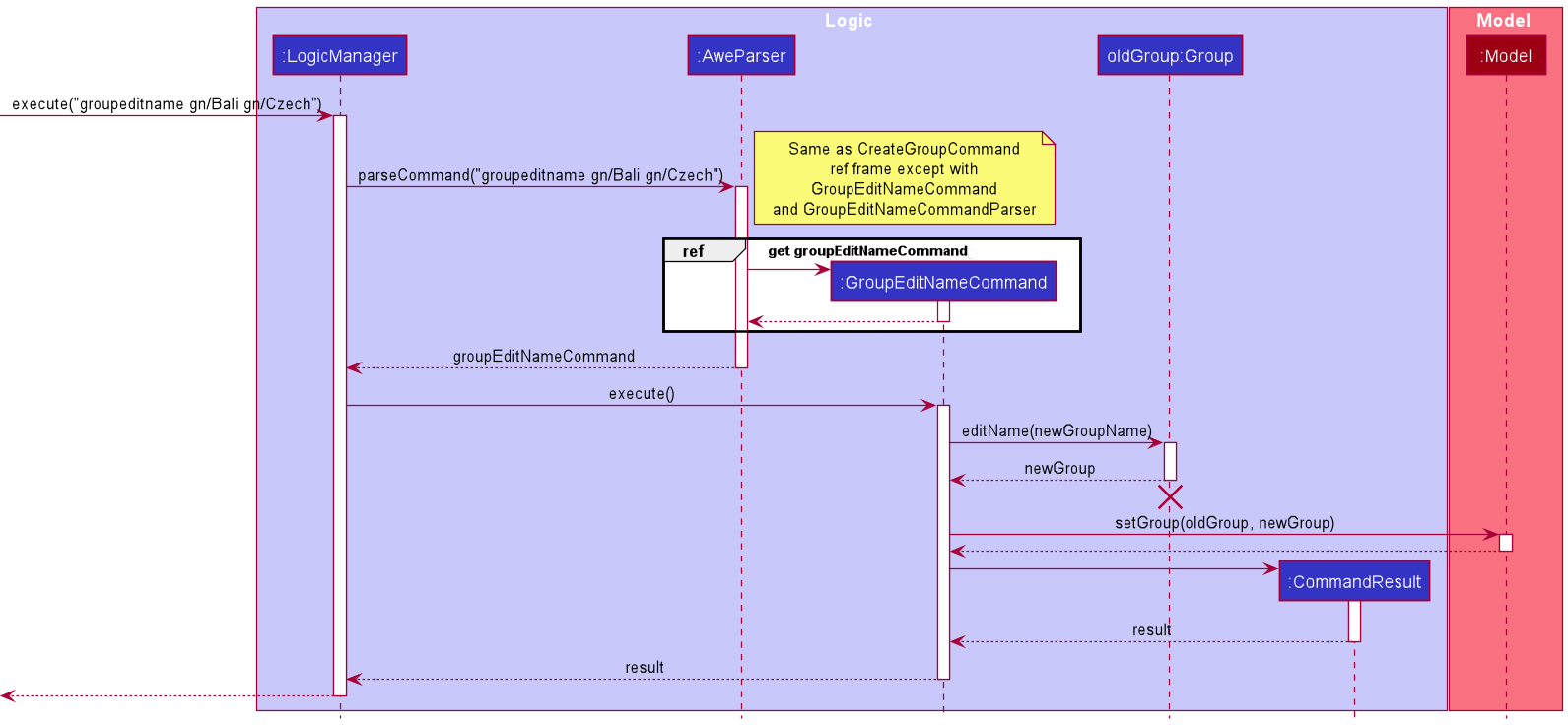

Group Edit Name Sequence Diagram
Fig 26. Group Edit Name Sequence Diagram

:information_source: Note: The lifeline for oldGroup:Group should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Click here to return to table of contents

Design considerations:

Aspect: User command for groupeditname:

  • Alternative 1 (current choice): Edit each attribute of a group with separate commands.
    • Pros: Significantly shorter commands.
    • Pros: Provides user with convenience of editing a group with minimal input.
    • Cons: More commands for user to work with. Harder to remember relevant commands.
  • Alternative 2 : Edit groups with a single command, as is implemented in editcontact.
    • Pros: Easy to implement.
    • Cons: Inconvenient for user to edit a person if there are multiple attributes they wish to change.
    • Cons: Easy for user to make an erroneous command.
  • Justification
    • Unlike Person objects, Group objects have many more attributes that users may wish to change.
    • The length of a single edit command that can change all attributes will be extremely long if a user wishes to add and remove multiple members simultaneously.
    • This significantly increases the chances of users inputting erroneous commands as well
    • Hence, editing attributes of a group using separate commands is more convenient and appropriate.

Click here to return to table of contents

Find group feature

The find group feature supports both single keyword and multi keyword search. This allows the displayed view panel to show the entries related to the search keywords entered by the user.

The following activity diagram shows what happens when a user executes a findgroups command:

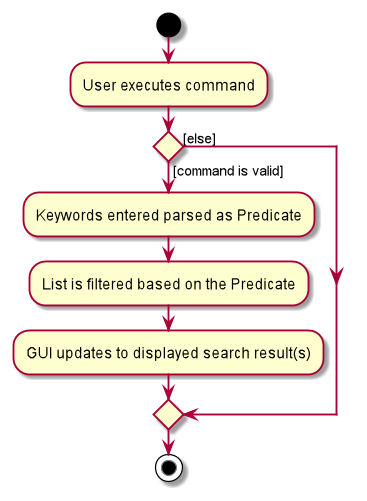

Find Groups Activity Diagram
Fig 27. Find Groups Activity Diagram

Given below is an example usage scenario and how the findgroup operation behaves at each step:

Assuming the programs only have the initial data when the user first starts the app, the FilteredList should contain only 2 groups - London and Bali.

Step 1. When the user executes findgroups London command, the message is passed into LogicManager and parsed by AweParser.

Step 2. FindGroupsCommandParser is created and the arguments are parsed by it. The arguments are used to create GroupContainsKeywordsPredicate and FindGroupsCommand is returned to the LogicManager.

Click here to return to table of contents

Step 3. The LogicManager then calls FindGroupCommand execute(model) method, which updated the FilteredList<Group> in ModelManager. Thereafter, the FilteredList<Group> should contains only London.

Step 4. The GUI listens for updates in the FilteredList<Group> and updates the display to display London only.

Step 5. CommandResult is returned to the LogicManager, which also switches the view panel to GroupsListPanel if needed. See UI implementation below for more details of switching view panel.

Step 6. The output from CommandResult is then displayed as an output for the user.

The following sequence diagram shows how the findgroups operation works:

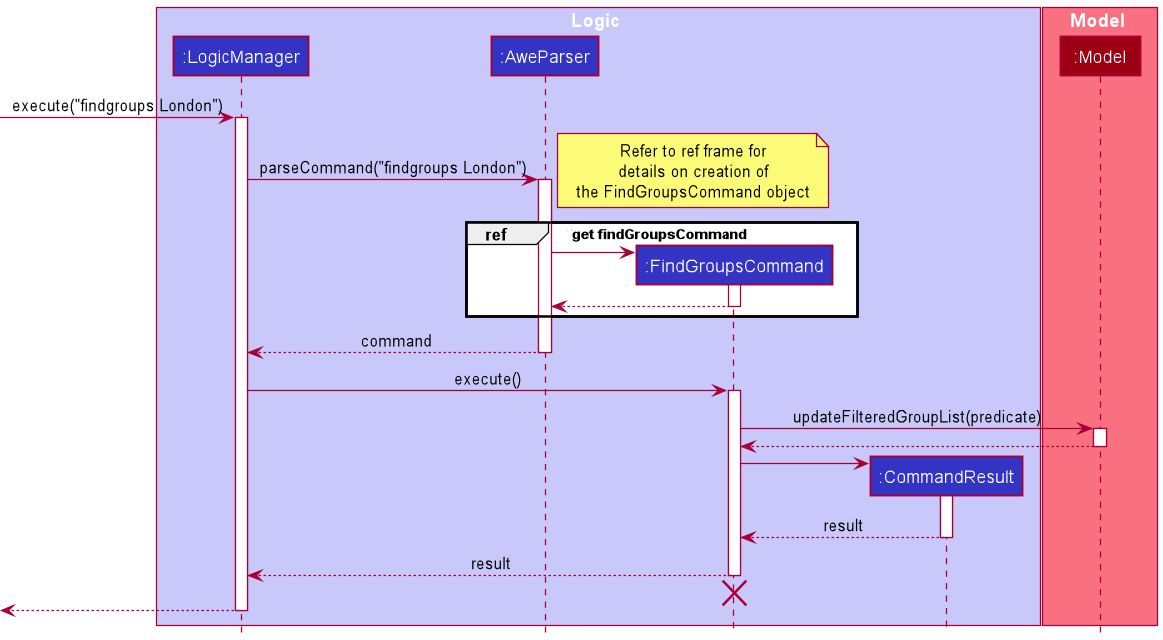

Find Groups Sequence Diagram
Fig 28. Find Groups Sequence Diagram

Click here to return to table of contents

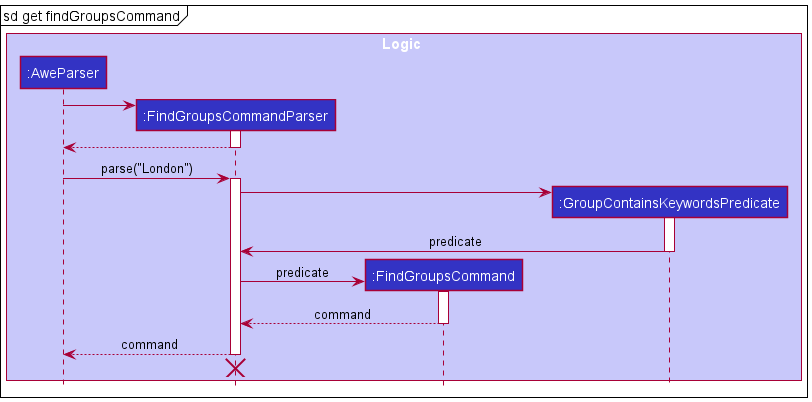

Find Groups Reference Sequence Diagram
Fig 29. Find Groups Reference Sequence Diagram

Click here to return to table of contents

Add expense feature

The add expense mechanism is facilitated by defining an Expense model and adding an Expense List field to Awe. The Expense model contains a Person field containing the payer of the Expense, a Cost field containing the cost of the expense, a List of Person objects that keeps track of the people involved in the expense, a HashMap that contains details of how much each member has paid in total for the expense.

The following activity diagram shows what happens when a user executes a addexpense command.

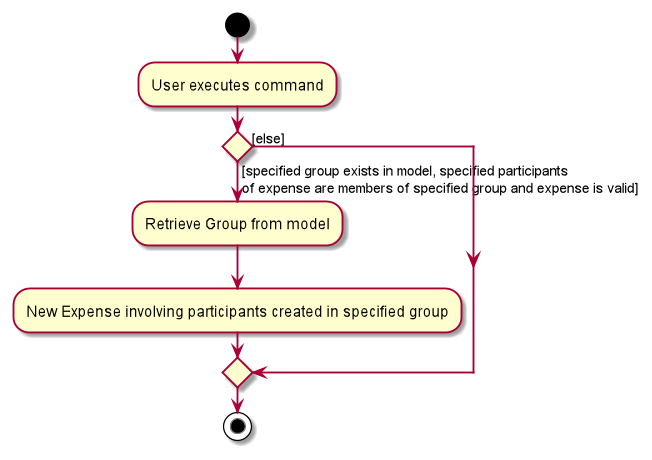

Add Expense Activity Diagram
Fig 30. Add Expense Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the addexpense mechanism behaves at each step.

Step 1. A valid addexpense command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The AddExpenseCommandParser parses the input and checks for presence of the relevant prefixes. It also checks that the group name is valid and all members specified are in the specified group. It returns a AddExpenseCommand.

Step 3. AddExpenseCommand runs its execute() method which adds the newly created expense involving the into the relevant group members into the group and the group is updated in the AWE model.Upon successful execution, CommandResult is returned.

The following sequence operation shows how the addexpense operation works.

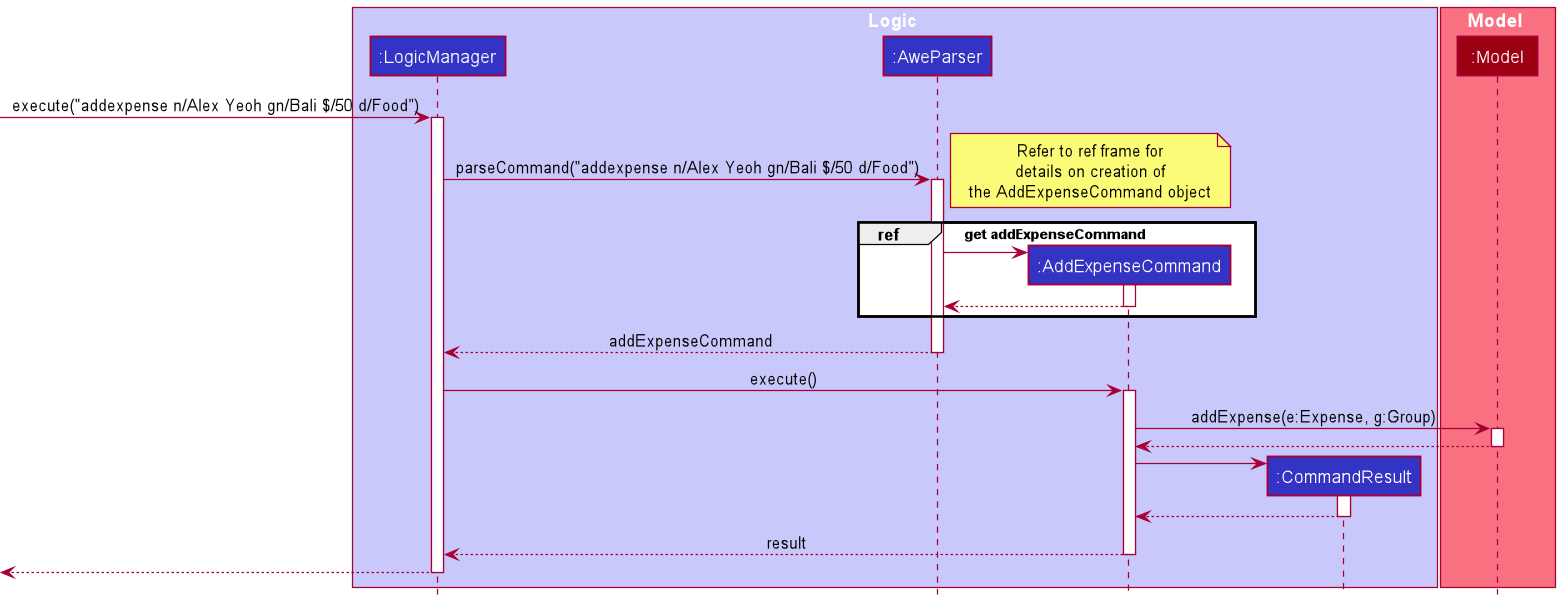

Add Expense Sequence Diagram
Fig 31. Add Expense Sequence Diagram

:information_source: Note: The lifeline for AddExpenseCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Click here to return to table of contents

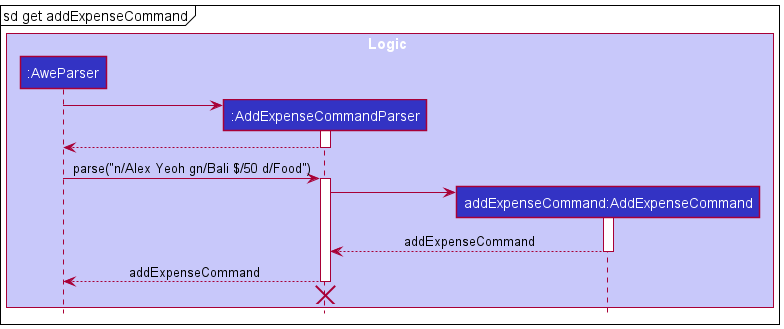

Add Expense Reference Sequence Diagram
Fig 32. Add Expense Reference Sequence Diagram

Design considerations:

Aspect: User command for addexpense:

  • Alternative 1 (current choice): Create Expense with specified group and group members.
    • Pros: Intuitive for user to create an expense with specified group and group members via their names.
    • Pros: Provides user with convenience of creating an expense with minimal input.
    • Cons: Harder to implement.
    • Cons: Easier for user to make an erroneous command.
  • Alternative 2 (index based): Create Expense with based on index position in ObservableList.
    • Pros: Easy to implement.
    • Cons: Inconvenient for user to add an expense as they have to check again the index of both the person and group.
    • Cons: Easy for user to make an erroneous command.
  • Justification
    • Each person has a unique name and the implementation for adding an expense based on a person’s and group’s name is simple.
    • Users may need a long time to find the index of a person or group if the list of either is very long.
    • Hence, adding expenses based on the specified person and group name is more appropriate.

Click here to return to table of contents

Find Expenses Feature

The find expenses mechanism is facilitated by Group. Each group has a unique group name and also an expense list required for finding expenses within a group.

The following activity diagram shows what happens when a user executes a findexpenses command.

Find Expenses Activity Diagram
Fig 33. Find Expenses Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the findexpenses mechanism behaves at each step.

Step 1. The user executes a valid findexpenses eat gn/London command. This prompts the LogicManager to run its execute() method.

Step 2. The FindExpensesCommandParser parses the input and checks for presence of the group name prefix. It also checks that the group name is valid (does not have any non-alphanumeric characters). The arguments are used to create DescriptionContainsKeywordsPredicate and FindExpensesCommand is returned to the LogicManager.

Step 3. The LogicManager then calls FindExpensesCommand execute(model) method, which updates the FilteredList<Expense> in ModelManager using the predicate created in step 2.

Step 4. The GUI listens for updates in the FilteredList<Expense> and updates the display accordingly.

Step 5. CommandResult is returned to the LogicManager, which also switches the viewpanel to ExpensesListPanel if needed.

Step 6. The output from CommandResult is then displayed as an output for the user.

The following sequence operation shows how the findexpenses operation works.

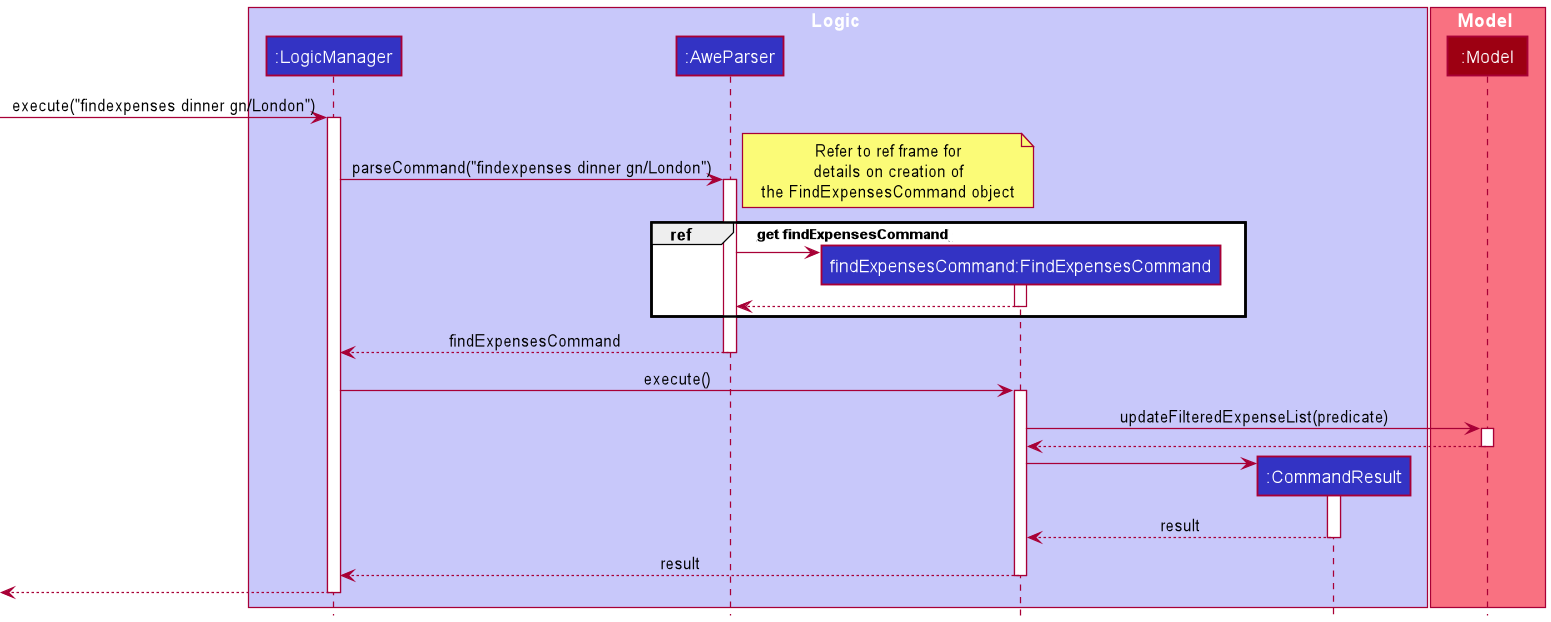

Find Expenses Sequence Diagram
Fig 34. Find Expenses Sequence Diagram

:information_source: Note: The lifeline for FindExpensesCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Click here to return to table of contents

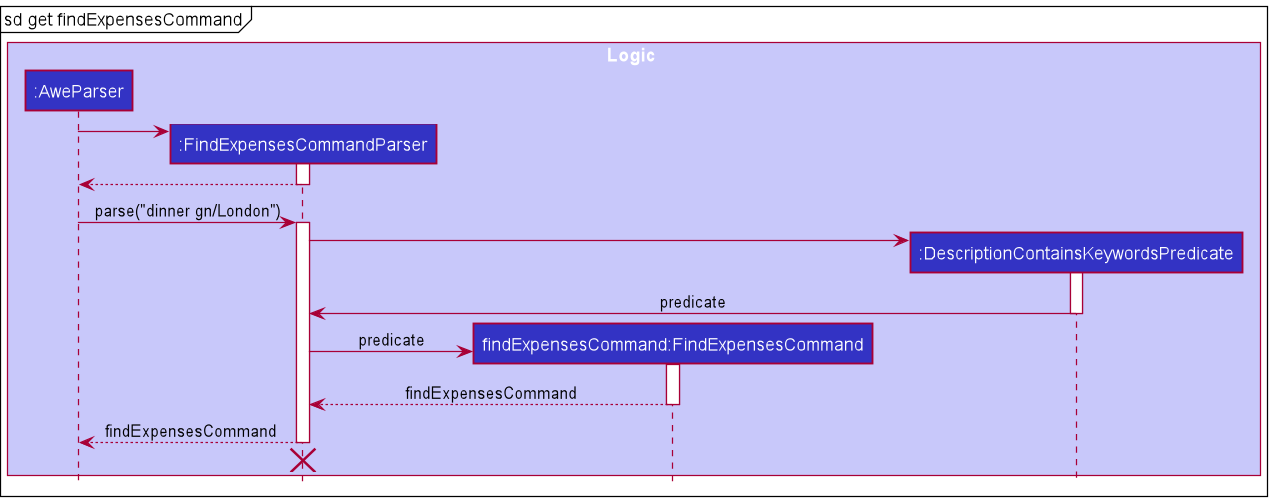

Find Expenses Reference Sequence Diagram
Fig 35. Find Expenses Reference Sequence Diagram

Design considerations:

Aspect: User command for findexpenses:

  • Alternative 1 (current choice): Find based on GroupName
    • Pros: Easy to implement.
    • Cons: Long user command if group name is long.
    • Cons: Requires imposition of constraint that group names are unique.
  • Alternative 2 (index based): Find expenses in the group indicated by index position in ObservableList
    • Pros: Short user command with just the index.
    • Cons: User needs to check for the right index of the group.
    • Cons: Easy for user to make an erroneous command.
  • Justification
    • Each group has a unique name and can be used easily in the implementation to find expenses within the specified group.
    • Users may need a long time to find the index of the group if the list of groups is very long.
    • This would be more inconvenient for the user.
    • Hence, finding expenses based on the specified group name is more appropriate.

Click here to return to table of contents

Delete Expense Feature

The delete expense mechanism is facilitated by the addition of an ExpenseList field within the Awe object maintained by the model. Each Expense belongs to a Group object, also maintained within the Awe. Deletion of an expense must be accompanied by deletion of the expense from the Group object to which it belongs. The command allows the user to delete an expense based on the index position of the expense in the page viewed by the user. This means that the user is constrained to only being permitted to delete expenses when they are viewing a list of expenses; that is, after they enter the findexpenses or expenses command.

The following activity diagram shows what happens when a user executes a deleteexpense command.

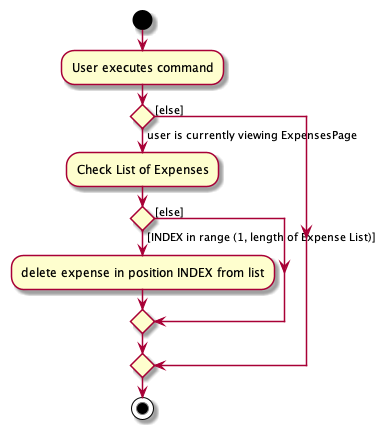

Delete Expense Activity Diagram
Fig 36. Delete Expense Activity Diagram

Click here to return to table of contents

Given below is an example usage scenario and how the deleteexpense mechanism behaves at each step.

Step 1. A valid deleteexpense command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The DeleteExpenseCommandParser parses the input and checks for presence of the INDEX input. It returns a DeleteExpenseCommand.

Step 3. DeleteExpenseCommand runs its execute() method which checks if the INDEX entered is within the range of the size of the list of expneses seen by the user. If so, the Expense at the INDEX position is deleted from the ExpenseList. The ObservableList within ExpenseList is updated, meaniing the UI updates and the user can see the new list of expenses, without the deleted expense.

Step 4. The Group to which this expense belongs is retrieved from the ExpenseList. The expense is subsequently deleted from the expenses field present in the Group object. The updated Group is then placed back into the GroupList within the Awe.

Step 5: Upon successful execution, CommandResult is returned.

Click here to return to table of contents

The following sequence operation shows how the deleteexpense operation works.

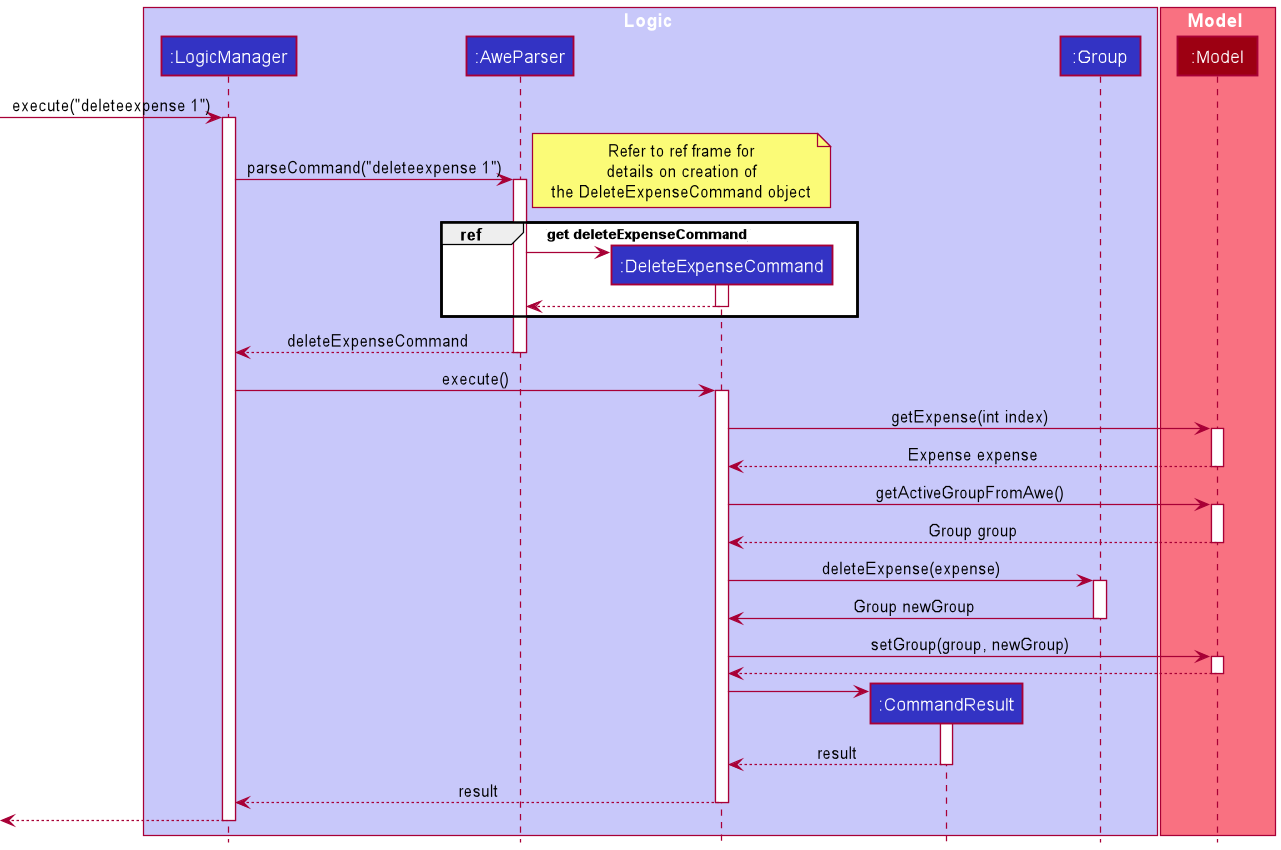

Delete Expense Sequence Diagram
Fig 37. Delete Expense Sequence Diagram

:information_source: Note: The lifeline for DeleteExpenseCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

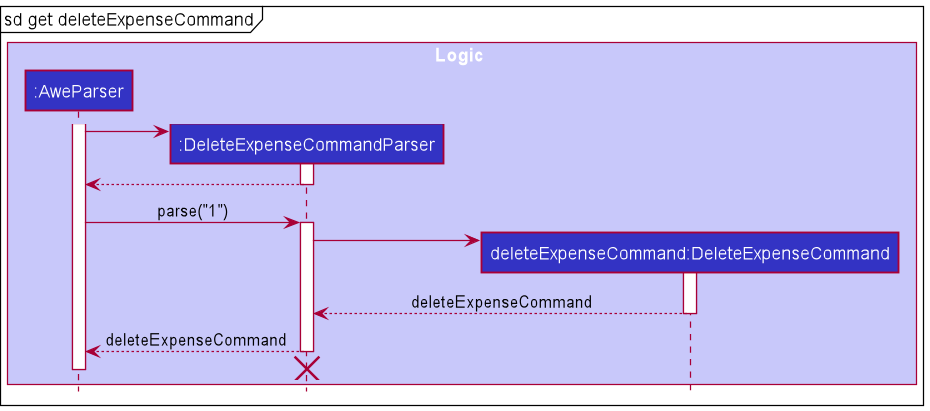

Delete Expense Reference Sequence Diagram
Fig 38. Delete Expense Reference Sequence Diagram

Click here to return to table of contents

Design considerations

Aspect: User command for deleteexpense:

  • Alternative 1 (current choice): Delete based on index position in ObservableList
    • Pros: Easy to implement.
    • Pros: Short user command.
    • Cons: Less intuitive for user.
    • Cons: Easy for user to make an erroneous command.
  • Alternative 2 (description based): Delete based on description
    • Pros: Easy to implement.
    • Pros: Difficult for user to make an erroneous command.
    • Cons: Long user command.
    • Cons: Requires imposition of constraint that expense description names are unique.
  • Justification
    • Expenses, unlike Groups, do not contain a large volume of information.
    • This information is unrecoverable once deleted.
    • However, the damage to a user as a result of an error is not significant. The user can re-enter the details with a single command.
    • Therefore, the need to protect the user from erroneous decisions is not significant.
    • Furthermore, many expenses are likely to have similar descriptions. Constraining users to using unique descriptions for expenses is likely to compromise the user experience.
    • As such, it is better to choose Alternative 1, as this allows the user to quickly delete expenses, and not compromise on the flexibility of the user.

Click here to return to table of contents

Calculate Payments Feature

The purpose of this feature is to provide users with a simple set of transactions that would allow all debts within the group to be settled. The UI mechanism is facilitated by the addition of a PaymentList field of Payment objects, present within the Awe object maintained by the model. The functionality of this feature is facilitated by the fact that group objects maintain two hashmaps: -

  • paidByPayers, which maintains how much each member of the group has paid (total payments) during the course of the trip.
  • splitExpenses, which maintains how much expenditure each member of the group has incurred (total expenditure) during the course of the trip. These maps allow calculations with respect to how much each individual is owed, and how much each individual owes.

The Algorithm

The invariant maintained is that the sum of all payments made (values within paidByPayers) should equal the total expenditures incurred by the group (values within splitExpenses). Define surplus as the net amount each individual is owed by others. This ultimately means that some members have negative surplus, and some have positive surplus. The goal is to ensure that the deficits balance the surpluses with the minimum number of transactions. To assist with the tracking of each individual and their surplus, an inner Pair class was created with a Person field and a primitive double field for the surplus.

  • Initialize an empty list of Pairs and an empty list of Payment objects.

  • Iterate through the members of the group and retrieve each individual’s total payments and total expenditures.

  • Calculate the surplus of each individual by subtracting their total expenditures from their total payments. Initialize a Pair object with the Person object of the individual, and their surplus. Add this pair to the list if the surplus is not 0.

Click here to return to table of contents

  • Iterate until the list is empty and perform the following steps.
    • Sort the list in ascending order of surplus. This means that those who owe more are placed in the earlier part of the list and those who are owed more are placed towards the end of the Pair list.
    • Retrieve the first Pair and last Pair in the list. It is invariant that the first pair will have negative surplus and the last pair will have positive surplus.
    • Check to see which pair has a smaller magnitude. Define this value to be SMALL_VAL.
    • Create a Payment object with a Cost of SMALL_VAL, and payee and payer as the two individuals within the first pair and last pair retrieved respectively. Add this Payment object to the list of Payment objects.
    • If the pairs do not have equal magnitude, remove the pair with the surplus value of smaller magnitude from the list. Calculate the new surplus value of the other pair to be the sum of the surpluses of both pairs. Update the other pair with this new surplus value and place it back into the list.
    • If the pairs do have equal magnitude, remove both pairs from the list.
  • Return the list of Payment objects.

Click here to return to table of contents

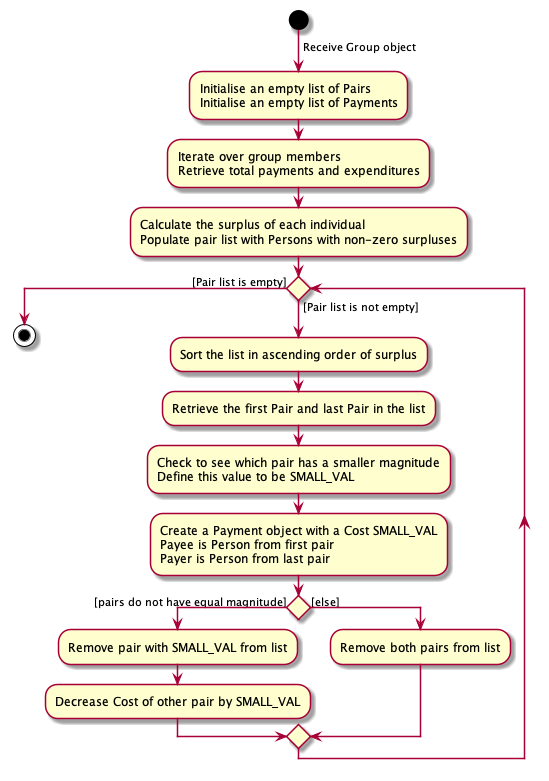

The following diagram shows the flow of the algorithm.

Calculate Payments Command Algorithm Diagram
Fig 39. Calculate Payments Command Algorithm Diagram

Click here to return to table of contents

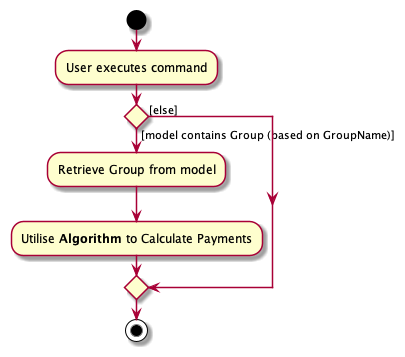

The following activity diagram shows what happens when a user executes a calculatepayments command.

Calculate Payments Activity Diagram
Fig 40. Calculate Payments Activity Diagram

Given below is an example usage scenario and how the calculatepayments mechanism behaves at each step.

Step 1. A valid calculatepayments command is given as user input. This prompts the LogicManager to run its execute() method.

Step 2. The CalculatePaymentsCommandParser parses the input and checks for presence of the GROUP_NAME prefix. It checks that the GROUP_NAME is valid (does not have any non-alphanumeric characters). It returns a CalculatePaymentsCommand.

Step 3. CalculatePaymentsCommand runs its execute() method which checks if a group with the GROUP_NAME entered by the user has been created in the past. If so, this group is retrieved from the model.

Step 4. Subsequently, the Algorithm is used to tabulate a list of Payment objects.

Step 5. The PaymentList field is updated with the generated list of payments, triggering a change in the UI to show the user the list of payments.

Step 6. Upon successful execution, CommandResult is returned.

Click here to return to table of contents

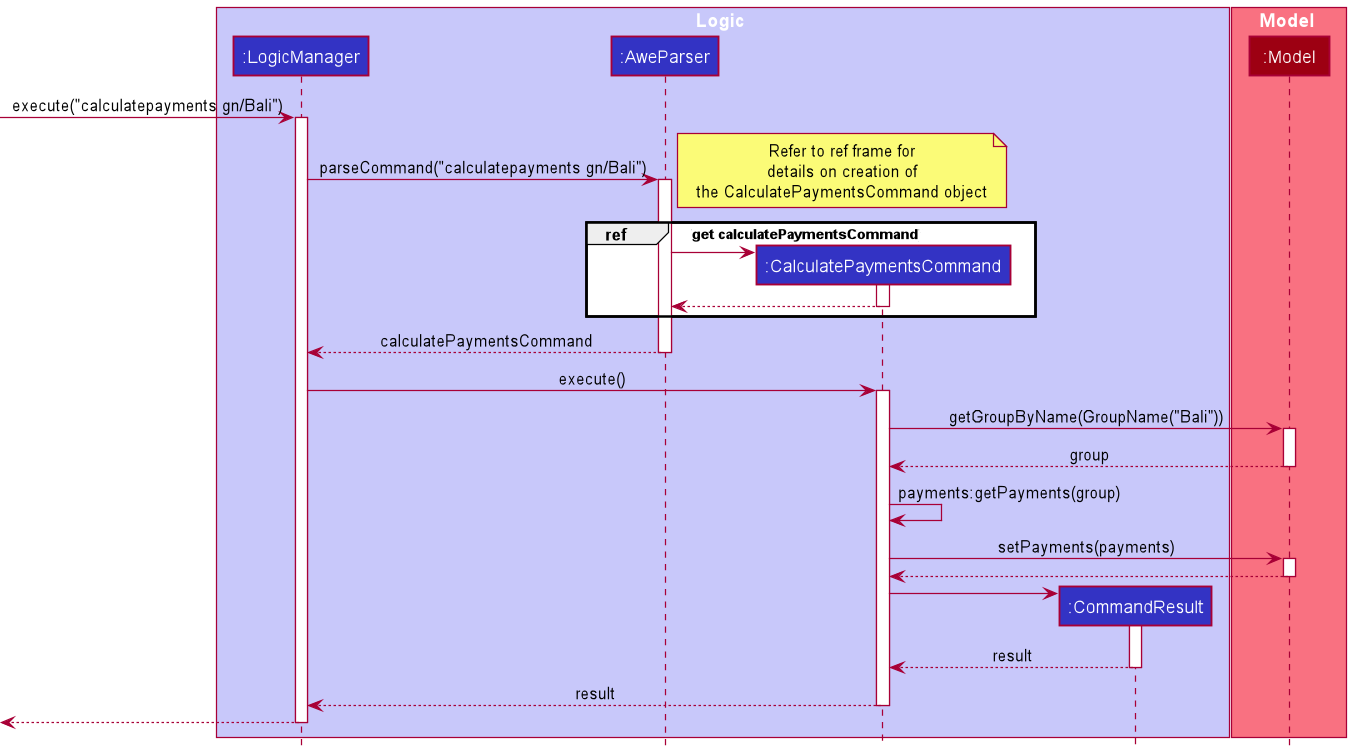

The following sequence operation shows how the calculatepayments operation works.

Calculate Payments Sequence Diagram
Fig 41. Calculate Payments Sequence Diagram

:information_source: Note: The lifeline for CalculatePaymentsCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

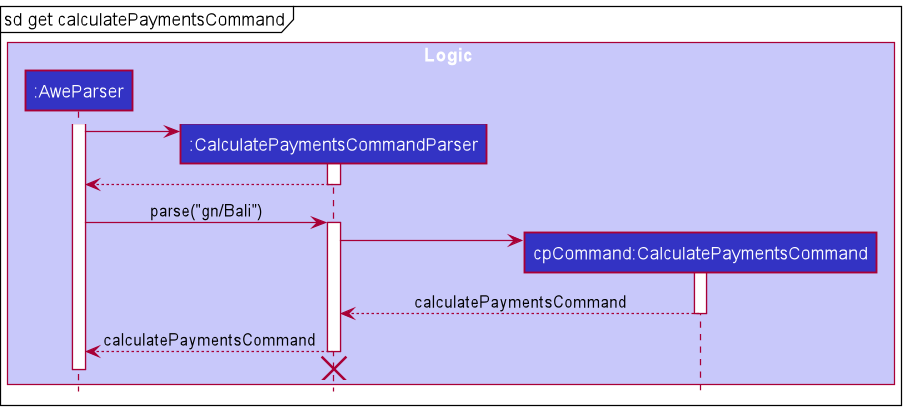

Calculate Payments Reference Sequence Diagram
Fig 42. Calculate Payments Reference Sequence Diagram

Note: When a Person is deleted from contacts or removed from the group, the functioning of this command does not change. The deleted person may still be part of the list of payments depending on the expenses they had previously.

Click here to return to table of contents

Design considerations

Aspect: Algorithm utilized for calculatepayments:

  • Alternative 1 (current choice): Prioritize settling of bigger debts
    • Pros: Easy to implement.
    • Pros: Smaller number of transactions.
    • Cons: Larger value transactions.
  • Alternative 2: Prioritize settling of smaller debts
    • Pros: Smaller value transactions.
    • Cons: Greater number of transactions.
    • Cons: More difficult to implement.
  • Justification
    • The size of the transaction matters less to the user than the volume of transactions.
    • Moreover, an easier implementation reduces the possibility of bugs.
    • As such, we chose to prioritize the settling of bigger debts in our algorithm.

Click here to return to table of contents

UI

AWE has multiple lists / views to display such as for groups, contacts and expenses.

The display, called view panel, will only be able to show up 1 view at a time depending on the command. It is of upmost importance to get it to display the correct view.

To achieve the toggling between each view panels, we implemented the following:

  • An enumeration UiView to contain the following CONTACT_PAGE, GROUP_PAGE, EXPENSE_PAGE, TRANSACTION_SUMMARY, PAYMENT_PAGE. Each enum represents a different view.
  • CommandResult was given 6 more boolean fields, each representing a different view as well.
  • MainWindow checks for the 6 boolean fields in CommandResult and passes UiView to ViewPanel for toggling the view.

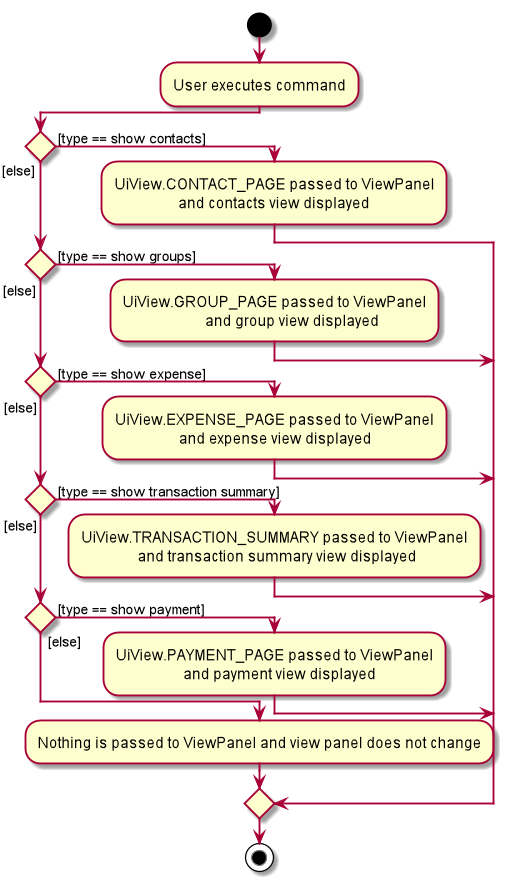

The following activity diagram shows how the MainWindow checks and sends the UiView to ViewPanel.

Click here to return to table of contents

Ui Toggling Activity Diagram
Fig 43. Ui Toggling Activity Diagram

Click here to return to table of contents

Proposed Implementation

Aspect: Navigating between different view

  • Alternative 1: Make use of JavaFx’s tab
    • Pros: Easy to implement.
    • Cons: Unable to fully customized the layout. Have to use the standard JavaFx’s tab layout.
  • Alternative 2 (current choice): Replacing the child of the view panel node
    (Refer to JavaFx tutorial for more information about JavaFx)
    • Pros: More customizable in terms of layout.
    • Pros: Able to make use of existing codes.
    • Cons: More classes to implement to handle the toggling between views.
  • Justification
    • We want to place the command result display below the buttons according to our wireframe.
    • Using JavaFx’s tab will not let us customize the layout as such.
    • Hence, replacing the child of a view panel is more appropriate.

Ui Navigation Buttons

To improve the usability of AWE, buttons are implemented into the Ui to allow switching of view easily.

However, only 2 main views can be toggled by the buttons - Contacts page and Groups page.

Navigation Buttons is designed using Model View Controller (MVC) pattern.

  • View: Buttons
  • Controller: EventHandler
  • Model: Backend codes for displaying the list

To achieve this, the following is implemented:

  • 2 buttons (GroupViewButton and ContactViewButton) for the user to click.
  • Event listener for each button - GroupButtonListener and ContactButtonListener. The event listener works by calling ViewPanel#toggleView when the button is clicked.

Click here to return to table of contents

Given below is an example usage scenario and how the button mechanism behaves at each step. In this example, the button used is GroupViewButton but it can also be replaced with ContactViewButton.

Step 1. When GroupViewButton is initiated, an event listener GroupButtonListener is created and used.

Step 2. Once the user clicks on GroupViewButton, the event listener will trigger and the GroupButtonListener#handle will run. This calls ViewPanel#toggleView and passes UiView.GROUP_PAGE as parameters.

Step 3. ViewPanel will change the child of itself to ContactListPanel (Refer to JavaFx tutorial for more information about JavaFx). Hence, GUI will update to show contact page

Documentation, logging, testing, configuration, dev-ops

Click here to return to table of contents

Appendix: Requirements

Product scope

Target user profile:

  • travels in groups
  • wants to split expenses in a convenient and efficient manner
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition:

Travellers have big notes that make settling payments inconvenient. Most travel groups often designate one person to pay. This method of settling payments poses a vexing task of splitting costs at the end of the day or on-the-spot. Our app effectively splits bills between different contacts to serve this purpose.

Click here to return to table of contents

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * beginner user who first opened the app view the help page so that I can learn how to use the app
* * * user with contacts to remember add a contact keep track of my contacts
* * * user who has lots of contacts to keep track of view contacts easily see my contacts in one centralized location
* * * user who wants to find contacts with a certain string of characters in their name find contacts by a regex search for contacts easily
* * * user who has lots of contacts to keep track of tag a contact keep track of contacts by certain characteristics/tags
* * * user with contacts that no longer exist delete a contact keep my contacts relevant and current
* * * user with contacts that have changed edit a contact keep my contacts accurate and current
* * * user with a trip to go on add a group keep track of my groups
* * * user who has lots of trips to keep track of view groups easily see my groups in one centralized location
* * * user who wants to find groups with a certain string of characters in their name find groups by a regex search for groups easily
* * * user who has lots of groups to keep track of tag a group keep track of groups by certain characteristics/tags
* * * user with groups that no longer exist delete a group keep my groups relevant and current
* * * user with flexible travel plans edit a group keep my groups accurate and current
* * * user that has paid for a shared experience easily check how much I have paid up front ensure I have liquidity for emergencies and or other unforeseen expenses
* * * user who has paid for others easily check how much I am owed by friends recoup the money I have paid on their behalf
* * * user paying for a shared expense enter the amount I have paid update the total amount they have to pay
* * * user that owes my friend money easily check how much I owe each person conveniently proceed to pay my friend
* * * busy user who does not want to remember phone numbers easily save all my friends’ numbers conveniently proceed to pay my friend
* * * user with flexible travel plans edit the details of a trip/group (members, group name, tags) modify the records quickly and easily
* * * beginner user run the app easily with a click of a button avoid wasting time trying to figure out how to get the app to work
* * * inexperienced user in the app who types fast type in the commands for the app do more things in the app with the same amount of time compared to using a mouse to click
* * * user who wants an easy workflow easily toggle between contacts and groups page with a command or a click of a button make my workflow on the app smoother
* * user who has to recoup the money divide up the expenses suitably amongst my friends know how much to recoup from each person
* * user who worries about individual expenses check the breakdown of my personal expenditure keep track of how much money I have spent
* * user who likes to differentiate work from leisure use this app to separate the different types of contacts I have I won’t mix them up
* * user who wants to stay in contact with friends use this app to easily save their phone numbers I can remain in contact
* * potential user exploring the app see the app containing sample data see what the app generally looks like when it is used
* * potential user testing the app run the app on different platforms (windows, linux and os-x) not have to specifically run a certain platform
* user whose friends frequently change numbers use this app to easily edit their numbers or save multiple numbers with notes easily remember which number to use
* beginner user that is tech-savvy view the documentation figure out how to use the app
* beginner user easily distinguish functions in the app use it without the app being too daunting
* expert user refer to previous trips and the expenditure plan future trips efficiently

Click here to return to table of contents

Use Cases

(For all use cases below, the System is the AWE and the Actor is the user, unless specified otherwise)

Contacts Use Cases

Use case: UC1 - Add a contact

MSS

  1. User chooses to add a contact to the AWE.
  2. User enters add command into CLI along with contact name, phone number, and tags if applicable.
  3. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. AWE detects invalid command format that does not contain all 2 parameter identifiers (“n/”, “p/”).
    • 2a1. AWE returns invalid command format error and displays add command format and example.
      Use case ends.
  • 2b. Command contains 2 parameters identifiers but name is blank.
    • 2b1. AWE reminds user that names should only contain alphanumeric characters and should not be blank.
      Use case ends.
  • 2c. Command contains 2 parameters identifiers but phone number is less than 3 digits or not a number.
    • 2c1. AWE reminds user that phone numbers should only contain numbers and be at least 3 digits long.
      Use case ends.

Click here to return to table of contents

Use case: UC2 - Delete a contact

MSS

  1. User finds contacts (UC4) or views all contacts (UC5).
  2. User requests to delete a specific contact in the list.
  3. AWE deletes the contact.
  4. AWE removes the contact from groups of which the person was a member.
  5. AWE displays confirmation message.
    Use case ends.

Extensions

  • 1a. The contacts page is empty.
    Use case ends.
  • 2a. The given index is invalid.
    • 2a1. AWE shows an error message.
  • 2b. User is not viewing a list of contacts when entering command.
    • 2b1. AWE shows an error message asking user to enter findcontacts or contacts command first.
      Use case ends.

Click here to return to table of contents

Use case: UC3 - Edit a contact

MSS

  1. User finds contacts (UC4) or views all contacts (UC5).
  2. User requests to edit a specific contacts in the list.
  3. User enters edited information.
  4. AWE edits the contacts.

Extensions

  • 1a. The contacts page is empty.
    Use case ends.
  • 3a. The given index is invalid.
    • 3a1. AWE shows an error message.
      Use case resumes at step 2.
  • 3b. The given information has an invalid format.
    • 3b1. AWE shows an error message. Use case resumes at step 2.
  • 3c. User is not viewing a list of contacts when entering command.
    • 3c1. AWE shows an error message asking user to enter findcontacts or contacts command first.
      Use case ends.

Click here to return to table of contents

Use case: UC4 - Find contacts

MSS

  1. User request to find contacts based on keyword(s).
  2. AWE shows a list of contacts that matches the keyword(s).
  3. AWE displays a message with number of contacts found
    Use case continues.

Extensions

  • 2a. There isn’t any contacts saved.
    • 2a1. AWE displays nothing in the contacts page ie an empty screen.
      Use case ends.
  • 2b. There is no contacts matching the search parameters.
    • 2b1. AWE displays nothing in the contacts page ie an empty screen.
      Use case continues.

Use case: UC5 - View all contacts

MSS

  1. User requests to view contacts.
  2. AWE shows list of contacts.
    Use case ends.

Extensions

  • 2a. There are no contacts to be listed.
    • 2a1. AWE does not display any contacts but an empty list.
      Use case ends.

Click here to return to table of contents

Groups Use Cases

Use case: UC6 - Create travel group

MSS

  1. User chooses to create a group.
  2. User enters create group command into CLI along with group name and names of members.
  3. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. AWE detects group member whose name is not in the AWE.
    • 2a1. AWE displays message to remind User to type in full name of members as in the AWE.
      Use case ends.

Use case: UC7 - Delete travel group

MSS

  1. User requests to delete group with a specific name.
  2. AWE deletes group with specified group name.
  3. AWE shows updated list of groups.
  4. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. AWE detects group name that contains non-alphanumeric characters.
    • 2a1. AWE displays message to remind User to type in a group name that contains only alphanumeric characters.
      Use case ends.
  • 2b. AWE detects group name that is not in AWE.
    • 2a1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.

Click here to return to table of contents

Use case: UC8 - Change group name

MSS

  1. User requests to change group name.
  2. Named is changed for relevant group.
  3. AWE shows updated list of groups and contacts.
  4. AWE displays confirmation message.
    Use case ends.

Extension

  • 1a. AWE detects that the user input does not follow the command format.
    • 1a1. AWE displays message of invalid command format as well as the appropriate command usage.
      Use case ends.
  • 1b. AWE detects that there is no valid old group name or new group name being specified.
    • 1b1 AWE displays message informing user that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.
  • 1c. AWE detects group name that is not in AWE.
    • 1c1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.

Click here to return to table of contents

Use case: UC9 - Add contact to group

MSS

  1. User requests to add contact to a group.
  2. Contact added to group.
  3. AWE shows updated list of groups and contacts.
  4. AWE displays confirmation message.
    Use case ends.

Extension

  • 1a. AWE detects that the user input does not follow the command format.
    • 1a1. AWE displays message of invalid command format as well as the appropriate command usage.
      Use case ends.
  • 1b. AWE detects that there is no valid group name being specified.
    • 1b1 AWE displays error message informing user that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.
  • 1c. AWE detects group name that is not in AWE.
    • 1c1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.
  • 1d. AWE detects that there is no contact names being specified.
    • 1d1. AWE displays message informing user that there should be at least one group member in each group.
      Use case ends.
  • 1e. AWE detects contact name that is not in AWE.
    • 1e1. AWE displays message to inform user that none of the specified contact names are in AWE.
      Use case ends.

Click here to return to table of contents

Use case: UC10 - Remove contact from group

MSS

  1. User requests to remove contact from a group.
  2. Contact removed from group.
  3. AWE shows updated list of groups and contacts.
  4. AWE displays confirmation message.
    Use case ends.

Extension

  • 1a. AWE detects that the user input does not follow the command format.
    • 1a1. AWE displays message of invalid command format as well as the appropriate command usage.
      Use case ends.
  • 1b. AWE detects that there is no valid group name being specified.
    • 1b1 AWE displays message informing user that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.
  • 1c. AWE detects group name that is not in AWE.
    • 1c1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.
  • 1d. AWE detects that there is no contact names being specified.
    • 1d1 AWE displays message informing user that there should be at least one group member in each group.
      Use case ends.
  • 1e. AWE detects contact name that is not in AWE.
    • 1e1. AWE displays message to inform user that none of the specified contact names are in AWE.
      Use case ends.
  • 2a. AWE detects that the removal of person from group results in the group having 0 members.
    • 2a1. AWE deletes the group with 0 members
    • 2a2. AWE shows updated list of groups and contacts.
    • 2a3. AWE displays confirmation message and informs user that the group with 0 members has been deleted.
      Use case ends.

Click here to return to table of contents

Use case: UC11 - Add tag to group

MSS

  1. User requests to add tag to a group.
  2. Tag added to group.
  3. AWE shows updated list of groups.
  4. AWE displays confirmation message.
    Use case ends.

Extension

  • 1a. AWE detects that the user input does not follow the command format.
    • 1a1. AWE displays error message of invalid command format as well as the appropriate command usage.
      Use case ends.
  • 1b. AWE detects that there is no valid group name being specified.
    • 1b1 AWE displays message informing user that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.
  • 1c. AWE detects group name that is not in AWE.
    • 1c1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.
  • 1d. AWE detects that there is no valid tags being specified.
    • 1d1. AWE displays error message informing user that tags should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.

Use case: UC12 - Remove tag from group

MSS

  1. User requests to remove tag from a group.
  2. Tag removed from group.
  3. AWE shows updated list of groups.
  4. AWE displays confirmation message.
    Use case ends.

Click here to return to table of contents

Use case: UC13 - Find groups

MSS

  1. User request to find groups based on keyword(s).
  2. AWE shows a list of groups that matches the keyword(s).
  3. AWE displays a message with number of groups found.
    Use case ends.

Extensions

  • 2a. There isn’t any groups created.
    • 2a1. AWE displays nothing in the groups page ie an empty screen.
      Use case continues.
  • 2b. There is not groups matching the search parameters.
    • 2b1. AWE displays nothing in the groups page ie an empty screen.
      Use case continues.

Use case: UC14 - View all travel groups

MSS

  1. User choose to list all groups
  2. GroupsPage shows a list of groups
    Use case ends.

Extension

  • 2a. AWE detects that there is no group created.
    • 2a1. AWE displays a blank screen.
      Use case ends.

Click here to return to table of contents

Expenses Use Cases

Use case: UC15 - Add an expense

Preconditions: User has is a member of the specified travel group.

MSS

  1. User requests to add an expense to the specified travel group
  2. AWE displays confirmation message.
    Use case ends.

Extensions

  • 1a. AWE detects that the specified travel group does not exist.
    • 1a1. AWE informs user that the specified travel group does not exist.
      Use case ends.
  • 1b. AWE detects that inputted command is an incorrect format.
    • 1b1. AWE informs user that expense was not added and reminds the user of the correct format.
      Use case ends.
  • 1c. AWE detects that the cost inputted into the expense is more than one billion.
    • 1c1. AWE inform user that the cost of the expense has to be less than one billion.
      Use case ends.
  • 1d. AWE detects that the payer is not part of the specified travel group.
    • 1d1. AWE informs user that the payer has to be a part of the specified travel group.
      Use case ends.
  • 1e. AWE detects that individual payer are not part of the specified travel group.
    • 1e1. AWE informs user that the individual payer has to be part of the specified travel group.
      Use case ends.
  • 1f. AWE detects that the excluded member is not part of the specified travel group.
    • 1f1. AWE informs user that the excluded member has to be part of the specified travel group.
      Use case ends.

Click here to return to table of contents

  • 1g. AWE detects that all members in the specified travel group are excluded from the expense.
    • 1g1. AWE informs user that they cannot exclude all members in the travel group from the expense.
      Use case ends.
  • 1h. AWE detects that the total expenditure of the specified group is over one billion.
    • 1h1. AWE informs user that the total expenses of the travel group has reached its limit of one billion.
      Use case ends.

Click here to return to table of contents

Use case: UC16 - Delete an expense

MSS

  1. User finds expenses in a travel group (UC17) or lists expenses in a travel group (UC18).
  2. User requests to delete an expense from list of expenses viewed by its position on screen.
  3. AWE deletes the specified expense.
  4. AWE shows updated list of expenses.
  5. AWE displays confirmation message.

Extensions

  • 2a. User is not viewing a list of expenses when entering command.
    • 2a1. AWE shows an error message asking user to enter findexpenses or expenses command first.
      Use case ends.
  • 2b. The given index is not within range 1 to length of list of expenses on screen.
    • 2b1. AWE shows an error message saying index is invalid.
      Use case ends.

Click here to return to table of contents

Use case: UC17 - Find expenses in a travel group

MSS

  1. User request to find expense(s) based on keyword(s) and group name.
  2. AWE shows a list of expenses in specified group that matches the keyword(s).
  3. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. The specified group does not exist in AWE.
    • 2a1. AWE shows a message saying that there is no such existing group.
      Use case ends.
  • 2b. There are no expenses matching the search parameters.
    • 2b1. AWE displays nothing in the ExpensesPage.
      Use case ends.
  • 2c. The given group name is invalid.
    • 2c1. AWE displays error message saying that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.

Click here to return to table of contents

Use case: UC18 - List expenses of a travel group

MSS

  1. User request to list expenses of a specific group.
  2. AWE displays all the expenses of the group in ExpensesPage.
  3. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. The specified group does not exist in AWE.
    • 2a1. AWE displays message saying that there is no such group in AWE.
      Use case ends.
  • 2b. The given group name is invalid.
    • 2b1. AWE displays error message saying that group names should only comprise letters, numbers, and spaces, should be within 50 characters, and should not be blank.
      Use case ends.
  • 2c. AWE detect no expenses logged under the group.
    • 2c1. AWE displays an empty list in the ExpensesPage.
      Use case ends.

Use case: UC19 - Calculate individual expenses

MSS

  1. User requests to calculate and show individual expenses made in a specified group.
  2. AWE shows list of individual expenses.
  3. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. AWE detects group name that is not in AWE.
    • 2a1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.

Click here to return to table of contents

Use case: UC20 - Calculate payments

MSS

  1. User requests to calculate and show payments to be made for a specified group.
  2. AWE calculate payments for the specified group.
  3. AWE shows list of payments.
  4. AWE displays confirmation message.
    Use case ends.

Extensions

  • 2a. AWE detects group name that is not in AWE.
    • 2a1. AWE displays message to remind User to type in name of a group inside the AWE.
      Use case ends.
  • 3a. There are no payments to be made.
    • 3a1. AWE shows an empty list of payments.
    • 3a2. AWE displays a confirmation message stating that there are no payments to be made.
      Use case ends.

Click here to return to table of contents

Miscellaneous Use Cases

Use case: UC21 - Clear AWE of all entries

MSS

  1. User enters clearalldata command.
  2. All entries are deleted from AWE.
    Use case ends.

Use case: UC22 - Help user understand AWE

MSS

  1. User request to find commands and their explanations.
  2. AWE shows a list of command keyword(s) and explanations.
    Use case ends.

Extensions

  • 2a. AWE detects errant command.
    • 2a1. AWE displays the list of command keyword(s) and explanations.
      Use case ends.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 500 contacts without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. Should be able to hold up to 50 groups without a noticeable sluggishness in performance for typical usage.
  5. Layout between contacts and groups should be intuitive and easy to understand and navigate.
  6. Usage of $ should be standardized for money.

Click here to return to table of contents

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Private contact detail: A contact detail that is not meant to be shared with others
  • Transaction Summary: The amount each contact spent on a trip
  • Payment: The amount one contact has to pay another
  • ContactsPage: The page displaying all the contacts
  • GroupsPage: The page displaying all the travel groups
  • ExpensesPage: The page displaying all the expenses of a travel group

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Click here to return to table of contents

Deleting a contact

  1. Deleting a contact while contacts are being shown.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). List contacts using command contacts.

    2. Test case: deletecontact 1
      Expected: First contact is deleted from the visible list. List is updated.

    3. Test case: deletecontact 0
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

    4. Test case: deletecontact -1
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

    5. Other incorrect delete commands to try: deletecontact, deletecontact x, ... (where x is larger than the visible list size)
      Expected: Similar to previous.

  2. Deleting a contact while filtered contacts are being shown.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). List contacts using command findcontacts alex.

    2. Test case: deletecontact 1
      Expected: First contact is deleted from the visible list. List is updated.

    3. Test case: deletecontact 0
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

    4. Test case: deletecontact -1
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

Click here to return to table of contents

  1. Other incorrect delete commands to try: deletecontact, deletecontact x, ... (where x is larger than the visible list size)
    Expected: Similar to previous.

  2. Attempting to delete a contact when not viewing a list of contacts.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). The current page must not be an ContactsPage.

    2. Test case: deletecontact 1
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

Editing a contact

  1. Editing a contact while contacts are being shown.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). List contacts using command contacts.

    2. Test case: editcontact 1 n/Alex
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new name.

    3. Test case: editcontact 1 p/92748316
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new phone number.

    4. Test case: editcontact 1 n/Brandon p/93359216
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new name and phone number.

    5. Test case: editcontact 0 n/Alex
      Expected: No contact is edited. Error details shown in the status message. Status bar remains the same.

    6. Test case: editcontact 1
      Expected: No contact is edited. Error details shown in the status message. Status bar remains the same.

Click here to return to table of contents

  1. Other incorrect edit commands to try: editcontact, editcontact x n/NAME p/PHONE, ... (where x is larger than the visible list size)
    Expected: Similar to previous.

  2. Editing a contact while filtered contacts are being shown.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). List contacts using command findcontacts alex.

    2. Test case: editcontact 1 n/Alex
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new name.

    3. Test case: editcontact 1 p/92748316
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new phone number.

    4. Test case: editcontact 1 n/Brandon p/93359216
      Expected: First contact is edited from the visible list. List is updated to show edited contact with new name and phone number.

    5. Test case: editcontact 0 n/Alex
      Expected: No contact is edited. Error details shown in the status message. Status bar remains the same.

    6. Test case: editcontact 2 n/Bernice Yu
      Expected: No contact is edited as this name is identical to the name of the current contact at INDEX 2. Error details shown in the status message. Status bar remains the same.

    7. Test case: editcontact 1
      Expected: No contact is edited. Error details shown in the status message. Status bar remains the same.

    8. Other incorrect edit commands to try: editcontact, editcontact x n/NAME p/PHONE, ... (where x is larger than the visible list size)
      Expected: Similar to previous.

Click here to return to table of contents

  1. Attempting to delete a contact when not viewing a list of contacts.

    1. Prerequisites: The preloaded data for contacts are not modified. (No contacts are removed or added). The current page must not be ContactsPage.

    2. Test case: editcontact 1 n/Alex
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

Creating a group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: creategroup gn/London n/Irfan Ibrahim Expected: Group not created. Status message indicates that group already exists.

  3. Test case: creategroup gn/Toronto n/ Expected: Group not created. Status message indicates that the command requires at least 1 member.

  4. Test case: creategroup gn/Toronto n/Irfan Ibrahim Expected: Group Toronto created with member Irfan Ibrahim. Status message indicates new group has been created.

Click here to return to table of contents

Deleting a Group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added).

  2. Test case: deletegroup gn/London Expected: GroupList displayed. Group with name London not seen on the list. Status message will confirm deletion of the group.

  3. Test case: deletegroup gn/Turkey Expected: No changes as group does not exist. Error details shown in the status message.

Editing group name

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: groupeditname gn/London gn/Bali Expected: Name of London group remains unchanged. Status message indicates that group name Bali already exists.

  3. Test case: groupeditname gn/London gn/ Expected: Name of London group remains unchanged. Status message indicates that group name cannot be blank.

  4. Test case: groupeditname gn/London gn/Thailand Expected: Name of London group will change to Thailand. Status message indicates that the group name has been changed to Thailand.

Click here to return to table of contents

Adding a contact to group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: groupaddcontact gn/London n/Bernice Yu Expected: Group membership unchanged. Status message indicates that Bernice Yu is already in the group.

  3. Test case: groupaddcontact gn/London n/ Expected: Group membership remains unchanged. Status message indicates that the command requires at least 1 member.

  4. Test case: groupaddcontact gn/London n/Irfan Ibrahim Expected: Irfan Ibrahim added to group. Status message indicates that the new member has been added to group.

Removing a contact from group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: groupremovecontact gn/London n/Irfan Ibrahim Expected: Group membership unchanged. Status message indicates that contact is not removed as the contact was not previously in the group.

  3. Test case: groupremovecontact gn/London n/ Expected: Group membership remains unchanged. Status message indicates that the command requires at least 1 member.

  4. Test case: groupremovecontact gn/London n/Bernice Yu Expected: Bernice Yu removed from group. Status message indicates that the member has been removed from group.

Click here to return to table of contents

Adding a tag to group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: groupaddtag gn/London t/SchoolTrip Expected: Tags unchanged. Status message indicates that the tag SchoolTrip is already in the group.

  3. Test case: groupaddtag gn/London t/ Expected: Tags unchanged. Status message indicates that tag cannot be blank.

  4. Test case: groupaddtag gn/London t/Friends Expected: Friends tag added to group. Status message indicates that the new tag has been added to group.

Removing a tag from group

  1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

  2. Test case: groupremovetag gn/London t/Friends Expected: Tags unchanged. Status message indicates that the tag is not removed as the tag was not previously in the group.

  3. Test case: groupremovetag gn/London t/ Expected: Tags unchanged. Status message indicates that tag cannot be blank.

  4. Test case: groupremovetag gn/London t/SchoolTrip Expected: SchoolTrip tag removed from group. Status message indicates that the tag has been removed from group.

Click here to return to table of contents

Searching for groups

  1. Search for groups in GroupsPage

    1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

    2. Test case: findgroups London Expected: GroupList will list out 1 group with the name ‘London’. 1 groups found shown in the status message.

    3. Test case: findgroups London Singapore Expected: GroupList will list out 1 group with the name ‘London’. 1 groups found shown in the status message.

    4. Test case: findgroups Singapore Expected: GroupList will display a blank page. 0 groups found shown in status message.

  2. Search for groups when not viewing GroupsPage.

    1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

    2. Test case: findgroups London Expected: GroupList displayed. GroupList will list out 1 group with the name ‘London’. 1 groups found shown in the status message.

    3. Test case: findgroups London Singapore Expected: GroupList displayed. GroupList will list out 1 group with the name ‘London’. 1 groups found shown in the status message.

    4. Test case: findgroups Singapore Expected: GroupList displayed. GroupList will display a blank page. 0 groups found shown in status message.

Click here to return to table of contents

Viewing expenses

  1. Viewing all expenses of a specific group in ContactsPage or GroupsPage.

  2. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups and expenses are removed or added)

  3. Test case: expenses gn/London Expected: ExpenseList will list out all the expenses added to the London group. Status message confirms that all expenses are listed.

  4. Test case: expenses gn/Singapore Expected: No changes as group does not exist. Error details stating that specified group does not exist will be shown in status message.

Finding expenses

  1. Finding expenses for a specific group in ContactsPage or GroupsPage.

  2. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups and expenses are removed or added)

  3. Test case: findexpenses Transportation gn/London Expected: ExpenseList displayed. ExpenseList will list out expenses in the London group with descriptions containing “Transportation”. Status message says that 1 expense is found.

  4. Test case: findexpenses Transportation Buffet gn/London Expected: ExpenseList displayed. ExpenseList will list out 2 expenses with the matching keywords. 2 expenses found shown in the status message.

  5. Test case: findexpenses Transportation gn/Bali Expected: ExpenseList displayed. ExpenseList will display a blank page. 0 expenses found shown in status message.

  6. Test case: findexpenses Test gn/Singapore Expected: No change occurs. Status message says that the specified group does not exist.

Click here to return to table of contents

Adding an expense

  1. Adding an expense involving an existing member of a specific travel group.

    1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

    2. Test case: addexpense n/Alex Yeoh gn/London $/50 d/Dinner
      Expected: An expense of $50 for Dinner is added to the travel group London with Alex Yeoh as its payer.

    3. Test case: addexpense gn/London $/50 d/Dinner
      Expected: No expense added. Status message will display the correct format of the addexpense command.

  2. Adding an expense involving a payer not part of the specified travel group.

    1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

    2. Test case: addexpense n/David Li gn/London $/50 d/Dinner
      Expected: No expense added. Status message will indicate that the payer is not part of the specified travel group.

  3. Adding an expense involving a travel group that does not exist.

    1. Prerequisites: The preloaded data for groups are not modified. (No groups are removed or added)

    2. Test case: addexpense n/Alex Yeoh gn/Sweden $/50 d/Arcade
      Expected: No expense added. Status message will indicate that the specified travel group does not exist.

Click here to return to table of contents

Deleting an expense

  1. Deleting an expense while expenses of a group are being shown.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added). List expenses using command expenses gn/London.

    2. Test case: deleteexpense 1
      Expected: First expense is deleted from the visible list. List is updated.

    3. Test case: deleteexpense 0
      Expected: No expense is deleted. Error details shown in the status message. Status bar remains the same.

    4. Test case: deleteexpense -1
      Expected: No expense is deleted. Error details shown in the status message. Status bar remains the same.

    5. Other incorrect delete commands to try: deleteexpense, deleteexpense x, ... (where x is larger than the visible list size)
      Expected: Similar to previous.

  2. Deleting an expense while filtered expenses of a group are being shown.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added). List expenses using command findexpenses transport gn/London.

    2. Test case: deleteexpense 1
      Expected: First expense is deleted from the visible list. List is updated.

    3. Test case: deleteexpense 0
      Expected: No expense is deleted. Error details shown in the status message. Status bar remains the same.

    4. Test case: deleteexpense -1
      Expected: No expense is deleted. Error details shown in the status message. Status bar remains the same.

Click here to return to table of contents

  1. Other incorrect delete commands to try: deleteexpense, deleteexpense x, ... (where x is larger than the visible list size)
    Expected: Similar to previous.

  2. Attempting to delete an expense when not viewing a list of expenses.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added). The current page must not be an ExpensesPage.

    2. Test case: deleteexpense 1
      Expected: No expense is deleted. Error details shown in the status message. Status bar remains the same.

Calculating transaction summary

  1. Calculating individual spending of a group with expenses.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added).

    2. Test case: calculatepayments gn/London Expected: Transaction summary list populated with individual spending is displayed. Status message will indicate successful execution of the command.

    3. Test case: calculatepayments gn/Turkey Expected: No changes as group does not exist. Error details shown in the status message.

  2. Calculating payments of a group without expenses.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added).

    2. Test case: calculatepayments gn/Colombia Expected: Transaction summary list for each person will be displayed. Each person will have $0 as the amount of money they spent. Status message will indicate successful execution of the command.

Click here to return to table of contents

Calculating payments

  1. Calculating payments of a group with expenses.

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added).

    2. Test case: calculatepayments gn/London Expected: PaymentList populated with payments is displayed. Status message will indicate successful execution of the command.

    3. Test case: calculatepayments gn/Turkey Expected: No changes as group does not exist. Error details shown in the status message.

  2. Calculating payments of a group without expenses

    1. Prerequisites: The preloaded data for groups and expenses are not modified. (No groups or expenses are removed or added).

    2. Test case: calculatepayments gn/Colombia Expected: Empty PaymentList is displayed. Status message will indicate successful execution of the command.

Click here to return to table of contents
